China Best Sales Custom Large AISI 4340 Cast Iron Long Mild Steel Rolling Mill Transmission Propeller Pto Drive Shaft PTO Driveline

Product Description

custom large aisi 4340 cast iron long mild steel rolling mill transmission propeller pto drive shaft
The drive shaft and the passive shaft shall be a pair of directly adjacent shafts connected by transmission pairs (gears, pulleys, sprockets, etc.). driving shaft is closer to the power source .on the contrary, the passive shaft is similar to the working shaft, it is mainly used in lathes, milling machines, fans, conveyors, injection molding machines, processing centers, steam turbines, drilling machines, hydraulic turbines, machinery industry, etc.



We are manufacture main shaft,transmission shaft, rotor shaft,propeller shaft,wind power shaft,passive shaft, support roller shaft,gear shaft,eccentric shaft,custom and oem are accepted.

Product name

OEM machining forged 42CrMo steel thread axis shaft

Material

ZG45,ZG42CrMo,35CrMo,ect

Structure

Casting or forging

Process

Lathing, milling,grinding

Max.diameter

2000mm

Max.length

8000mm

Max.tolerance

±0.3

Type

According to drawings

Package

Seaworthy packing

Delivery time

15-45 days

Certification

SGS,ISO

 process equipment list

equipment process part size  qty     model
gantry milling machine 6000*2300*1600 1 BX2571
gantry milling machine 3000*1200*800 1 XQ2012
CNC centre 1000*600 1 1060
CNC centre 1300*700 1 1370
CNC centre 4300*2700 1 4370
vertical milling machine  1500  1 X53T
gantry boring and milling  1800*4000 1 B**2018
horizontal milling machine 960*1200*1200 1 TP *611B
horizontal lathe  dia300*3000 4 CW6163E
saw machine  dia5—300 4
grinding machine  1000*300 1 M71304
grinding macnine for outer dia 1500*3200 1 M1332B
gantry CNC centre 4000*2700 1 YR4571
common lathe dia20–1280,L 20–5000 6
common drilling machine  dia2–80 6
plasma cut machine  4000*12000 1 SXL-400
arc welding machine    2 500-2
co2 welding machine   14 350 500
other common machine  common milling ,lathe , driling and milling machine etc



FAQ
Q1: Are you a factory or trading company?
A:We are a factory and have more years manufacture and sales experience.

Q2: What is your sample policy?
A:We can supply the sample if we have , but the customers have to pay the sample cost and the courier cost.If sample quantity is more than our regular one, we will extra collect sample cost.

Q3: Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds.

Q4: What’s your delivery time?
A:For regular products, we keep them in stock. The specific delivery time depends on the items and the quantity of your order,usually15-20 days

Q5:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery.

Q6:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.

  /* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Carbon Steel
Load: Drive Shaft
Stiffness & Flexibility: Stiffness / Rigid Axle
Journal Diameter Dimensional Accuracy: IT6-IT9
Axis Shape: Straight Shaft
Shaft Shape: Stepped Shaft
Samples:
US$ 2000/Piece
1 Piece(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

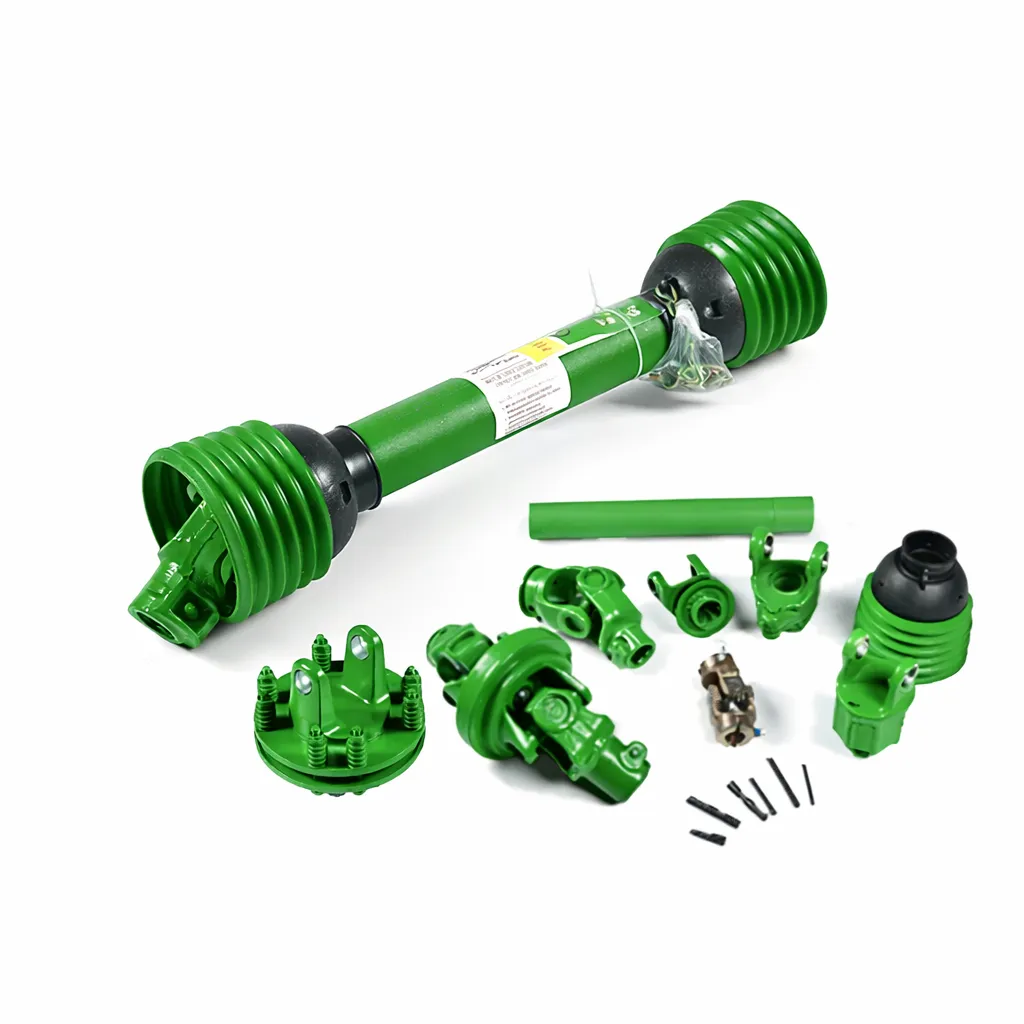

pto shaft

How do PTO drivelines ensure efficient power transfer while maintaining operator safety?

PTO (Power Take-Off) drivelines are designed to ensure efficient power transfer while prioritizing operator safety. These drivelines incorporate various features and mechanisms to achieve both objectives. Let’s delve into the details:

1. Safety Shields and Guards:

PTO drivelines often include safety shields or guards to enclose the rotating components, such as the driveline shaft and universal joints. These shields are typically made of durable materials and are designed to prevent accidental contact with the moving parts, reducing the risk of entanglement or injury. Safety shields and guards serve as a physical barrier between the driveline and operators, ensuring operator safety while allowing power transfer to occur efficiently.

2. Shear Pins or Bolts:

Shear pins or bolts are commonly used in PTO drivelines to provide a safety measure against excessive loads or sudden obstructions. These pins or bolts are designed to break or shear off when the torque exceeds a certain threshold, disconnecting the driveline and preventing damage to the driveline components. By sacrificing themselves under high load conditions, shear pins or bolts protect the driveline from potential damage, ensuring operator safety and minimizing the need for costly repairs.

3. Slip Clutches:

Slip clutches are another safety feature incorporated into PTO drivelines. These clutches allow for a controlled slipping action when the torque exceeds a predetermined limit. The slipping action protects the driveline and driven equipment from sudden shock loads or excessive torque, preventing damage to the driveline components and reducing the risk of operator injury. Slip clutches provide a safety margin and help maintain efficient power transfer by momentarily disengaging the driveline until the excessive torque diminishes.

4. Overload Protection Devices:

Some PTO drivelines are equipped with overload protection devices, such as torque limiters or electronic control systems. These devices monitor the torque levels in the driveline and automatically disengage or limit power transmission when the torque exceeds a safe threshold. By preventing the driveline from operating under extreme loads, overload protection devices safeguard the driveline components and maintain operator safety. These devices can be reset or adjusted once the excessive load is removed, allowing power transfer to resume.

5. Constant Velocity (CV) Joints:

PTO drivelines that utilize constant velocity (CV) joints offer several safety benefits. CV joints maintain a constant angular velocity, regardless of the operating angle of the driveline, reducing vibration and power loss. By providing smooth power transmission, CV joints minimize the risk of sudden jolts or jerks that could endanger operators or compromise the stability of the driven equipment. The consistent power transfer facilitated by CV joints enhances both operator safety and the overall efficiency of the driveline.

6. Operator Training and Safety Practices:

While not directly built into the driveline itself, operator training and safety practices play a crucial role in ensuring safe and efficient PTO driveline operation. It is essential for operators to receive comprehensive training on the proper use, maintenance, and safety protocols associated with PTO drivelines. This training should include guidelines for safe engagement and disengagement of the driveline, understanding the importance of safety shields and guards, and recognizing potential hazards and risks during operation. By following recommended safety practices, operators can minimize the likelihood of accidents or injuries and maintain efficient power transfer.

By combining these features and promoting proper operator training, PTO drivelines achieve a balance between efficient power transfer and operator safety. The incorporation of safety shields, shear pins or bolts, slip clutches, overload protection devices, and CV joints helps prevent accidents, protect driveline components, and ensure the well-being of operators. It is crucial to adhere to manufacturer guidelines and industry safety standards to maximize the effectiveness of these safety measures and maintain a safe working environment.

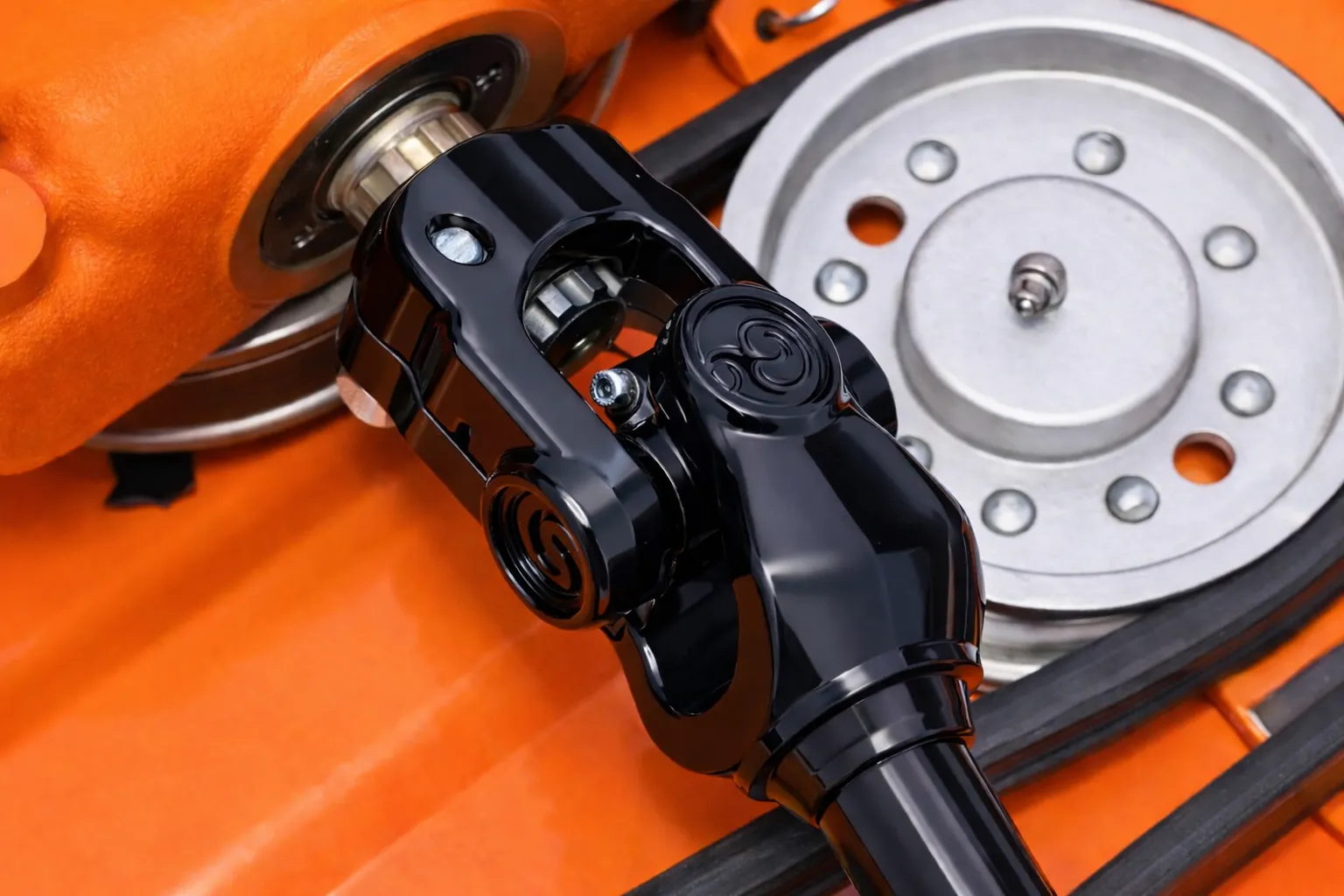

pto shaft

What safety precautions should operators follow when working with PTO drivelines?

Working with PTO (Power Take-Off) drivelines requires careful attention to safety due to the potential hazards associated with rotating components and high levels of torque. Operators should follow specific safety precautions to minimize the risk of accidents and injuries. Here are the key safety precautions that operators should follow when working with PTO drivelines:

1. Read and Follow Manufacturer’s Instructions:

– Operators should thoroughly read and understand the manufacturer’s instructions and safety guidelines provided for the specific PTO driveline and equipment they are operating. These instructions typically cover proper installation, operation, maintenance, and safety precautions specific to the equipment. Following the manufacturer’s guidelines ensures that the equipment is used correctly and reduces the risk of accidents.

2. Wear Appropriate Personal Protective Equipment (PPE):

– Operators should always wear the appropriate personal protective equipment (PPE) when working with PTO drivelines. This includes items such as safety glasses, protective gloves, sturdy footwear, and clothing that covers the body. PPE helps protect against flying debris, accidental contact with rotating components, and other potential hazards.

3. Ensure Proper Guarding and Shielding:

– PTO drivelines should be equipped with proper guarding and shielding to prevent accidental contact with rotating or moving parts. Operators should ensure that all guards and shields are in place and properly secured before operating the equipment. Guards and shields help contain debris, reduce the risk of entanglement, and protect against accidental contact with the driveline components.

4. Avoid Loose-Fitting Clothing and Jewelry:

– Operators should avoid wearing loose-fitting clothing, jewelry, or any other items that could get caught in the driveline components. Loose clothing or jewelry can be pulled into the rotating parts, resulting in entanglement or serious injuries. It is important to wear fitted clothing and remove any dangling accessories before operating the equipment.

5. Engage PTO Only When Necessary:

– Operators should engage the PTO only when necessary and disengage it when the equipment is not in use. Engaging the PTO while personnel are near the driveline increases the risk of accidental contact and injuries. The PTO should be engaged only when the equipment is properly set up, and all personnel are at a safe distance.

6. Be Aware of Surroundings:

– Operators should always be aware of their surroundings and ensure that no one is near the driveline before starting or operating the equipment. It is crucial to maintain a safe distance from the driveline and keep bystanders away to prevent accidental contact and injuries.

7. Shut Down Equipment Before Servicing:

– Before performing any maintenance or servicing tasks on the equipment or the PTO driveline, operators should shut down the equipment and disable the power source. This ensures that the driveline components are not in motion and reduces the risk of accidental startup or contact with moving parts.

8. Regular Maintenance and Inspection:

– Operators should adhere to a regular maintenance and inspection schedule for the PTO driveline and associated equipment. This includes checking for any signs of wear, damage, or loose connections. Regular maintenance helps identify potential issues before they become safety hazards and ensures that the driveline operates properly.

9. Receive Proper Training:

– Operators should receive proper training on the safe operation of the equipment and the PTO driveline. Training should cover topics such as equipment setup, safe operating procedures, emergency shut-off procedures, and the recognition of potential hazards. Well-trained operators are more likely to operate the equipment safely and respond appropriately in case of emergencies.

10. Follow Lockout/Tagout Procedures:

– When performing maintenance or repair tasks that require accessing the driveline components, operators should follow lockout/tagout procedures. This involves isolating the power source, applying locks and tags to prevent accidental startup, and verifying that the equipment is de-energized before beginning any work. Lockout/tagout procedures are essential for preventing unexpected energization and protecting personnel from hazardous energy.

By following these safety precautions, operators can minimize the risk of accidents and injuries when working with PTO drivelines. Safety should always be a priority, and operators should remain vigilant, adhere to proper procedures, and use common sense to ensure a safe working environment.

pto shaft

What benefits do PTO drivelines offer for tasks like tilling, mowing, and harvesting?

PTO (Power Take-Off) drivelines offer several benefits for tasks like tilling, mowing, and harvesting in agricultural operations. These benefits contribute to increased efficiency, improved productivity, and enhanced performance in these specific tasks. Let’s explore the advantages that PTO drivelines provide for each of these tasks:

Tilling:

1. Powerful and Efficient Operation: PTO drivelines enable tilling equipment, such as rotary tillers or disc harrows, to efficiently break up and prepare the soil for planting. The rotational power transmitted through the PTO shaft provides the necessary force for the tines or blades of the tiller to penetrate the soil, ensuring thorough tillage and soil preparation.

2. Uniform and Consistent Tilling: PTO-driven tillers offer consistent and uniform tilling depth and quality throughout the field. The power generated by the power source is evenly distributed through the PTO driveline, resulting in uniform tilling across the entire working width of the implement. This helps create an optimal seedbed for planting, promoting seed germination and crop growth.

3. Versatility and Adjustability: PTO drivelines allow for the use of different types and sizes of tillage implements, providing flexibility and adaptability to varying soil conditions and farming practices. Operators can easily attach and detach different tillage equipment to the PTO shaft, enabling them to switch between implements based on the specific requirements of the soil and crops.

Mowing:

1. Efficient Cutting: PTO-driven mowers, whether rotary or flail mowers, provide efficient cutting performance. The high rotational speed and power transmitted through the PTO driveline enable the mower blades to effectively cut through grass, weeds, or crops, resulting in a well-maintained and visually appealing appearance of the mowed area.

2. Wide Coverage and Reduced Time: PTO-driven mowers typically have wide cutting widths, allowing operators to cover a larger area in less time. This reduces the overall mowing time, increasing efficiency and productivity. The power transmitted through the PTO driveline facilitates the swift operation of the mower, ensuring efficient cutting even in dense vegetation.

3. Adjustable Cutting Height: PTO drivelines allow for easy adjustment of the cutting height of the mower. Operators can modify the height of the mower deck or attachment, ensuring precise cutting based on the desired aesthetic or functional requirements. This flexibility in cutting height adjustment enhances the versatility of PTO-driven mowers for various applications, such as maintaining lawns, meadows, or pastures.

Harvesting:

1. Powerful Harvesting: PTO drivelines provide the necessary power to operate harvesting equipment, such as combines, forage harvesters, or balers. The high torque and rotational power transmitted through the PTO shaft enable efficient harvesting of crops, ensuring smooth operation and reduced crop loss during the process.

2. Improved Harvesting Capacity: PTO-driven harvesting equipment often features wider headers or cutting widths, allowing for increased harvesting capacity. The power transferred through the PTO driveline enables the equipment to cover a larger area, improving overall harvesting efficiency and reducing the time required to complete the task.

3. Integration with Other Equipment: PTO drivelines facilitate the integration of various harvesting equipment with other implements or attachments. For example, a PTO-driven combine harvester can be equipped with a straw chopper or a grain cart, which can be powered by the same PTO driveline. This integration enhances the efficiency of the overall harvesting process and simplifies the logistics of crop collection and storage.

In summary, PTO drivelines offer several benefits for tasks like tilling, mowing, and harvesting. They provide powerful and efficient operation, uniform and consistent performance, versatility and adjustability, wide coverage and reduced time, adjustable cutting height, and increased harvesting capacity. These advantages contribute to improved efficiency, productivity, and performance in agricultural operations, helping farmers achieve optimal results in these critical tasks.

China Best Sales Custom Large AISI 4340 Cast Iron Long Mild Steel Rolling Mill Transmission Propeller Pto Drive Shaft PTO Driveline  China Best Sales Custom Large AISI 4340 Cast Iron Long Mild Steel Rolling Mill Transmission Propeller Pto Drive Shaft PTO Driveline
editor by CX 2024-02-23

China supplier CZPT SWC-CH Type Cardan Drive Shaft for Rolling Mill Drive Line

Product Description

Huading SWC Type Cardan Drive Shaft

No machine element other than a Cardan shaft allows power transmission of torque between spatially offset driving and driven shafts whose position can be changed during operation.
Spatial angular motion and changes in axial length are ensured by advanced constructional elements.
Thus, Cardan shafts have become an indispensable transmission component in industrial production.

Typical applications: Steel mill machinery, paper mill machinery, levelers, marine propulsion, pumps, amusement rides, wastewater treatment.

Advantage:
1. Low life-cycle costs and long service life;
2. Increase productivity;
3. Professional and innovative solutions;
4. Reduce carbon dioxide emissions and environmental protection;
5. High torque capacity even at large deflection angles;
6. Easy to move and run smoothly;

♦SWC  CH Cardan Shaft Basic Parameter And Main Dimension:

Model Tactical diameter
D
mm
Nominal torque
Tn
kN·m
Fatigue
torque
Tf
kN·m
Axis rotation
β
(°)
Stretch
length
LS
mm
Lmin Size
mm
Rotary inertia
kg.m2
Weight
kg
D1
js11
D2
H7
D3 Lm n-d k t b
h9
g Lmin

Increase
100mm
Lmin Increase
100mm
SWC180CH1 180 20 10 ≤25 200 925 155 105 114 110 8-17 17 5 24 7 0.181 0.0070 74 2.8
SWC180CH2 700 1425 0.216 104
SWC200CH1 200 32 16 ≤15 80 720 170 120 127 135 8-17 19 5 28 16 0.276 0.0130 76 3.6
SWC200CH2 50 690 0.261 74
SWC225CH1 225 40 20 ≤15 85 710 196 135 152 120 8-17 20 5 32 9.0 0.415 0.5714 95 4.9
SWC225CH2 70 640 0.397 92
SWC250CH1 250 63 31.5 ≤15 100 795 218 150 168 140 8-19 25 6 40 12.5 0.900 0.5717 148 5.3
SWC250CH2 70 735 0.885 136
SWC285CH1 285 90 45 ≤15 120 950 245 170 194 160 8-21 27 7 40 15.0 1.826 0.571 229 6.3
SWC285CH2 80 880 1.801 221
SWC315CH1 315 125 63 ≤15 130 1070 280 185 219 180 10-23 32 8 40 15.0 3.331 0.571 346 8.0
SWC315CH2 90 980 3.163 334
SWC350CH1 350 180 90 ≤15 140 1170 310 210 267 194 10-23 35 8 50 16.0 6.215 0.2219 508 15.0
SWC350CH2 90 1070 5.824 485
SWC390CH1 390 250 125 ≤15 150 1300 345 235 267 215 10-25 40 8 70 18.0 11.125 0.2219 655 15.0
SWC390CH2 90 1200 10.763 600
SWC440CH1 440 355 180 ≤15 400 2110 390 255 325 260 16-28 42 10 80 20 22.540 0.4744 1312 21.7
SWC440CH2 800 2510 24.430 1537
SWC490CH1 490 500 250 ≤15 400 2220 435 275 325 270 16-31 47 12 90 22.5 33.970 0.4744 1554 21.7
SWC490CH2 800 2620 35.870 1779
SWC550CH1 550 710 355 ≤15 500 2585 492 320 426 305 16-31 50 12 100 22.5 72.790 1.3570 2585 34.0
SWC550CH2 1000 3085 79.570 3045

·Notice:1.Tf-Torque allowed by fatigue strength under variable load
            2. Lmin-Minimum length after shortening
            3. L-Installation length as required





Universal Joint Shafts Features:

1. We have a very complete supply chain system, and can provide over 1000 different spare parts.

2 . Elastomer connecting in the middle;

3. Can absorb vibration, compensates for radial, axial and angular deviation;

4. Oil resistance and electrical insulation;

5. Have the same characteristic of clockwise and anticlockwise rotation;



Cardan Shaft Types:

We can supply you with SWP, SWC, WSD, and WS universal coupling as follows:

Welded shaft type with length compensation/ expansion joint

Short type with length compensation/ expansion joint

Short type without length compensation/ expansion joint

Long type without length compensation/ expansion joint

Double flange with length compensation/ expansion joint

Long type with big length compensation / big expansion joint

Super Short type with length compensation/ expansion joint





Our Services:

1. Design Services
Our design team has experience in Universal Joint shafts relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2. Product Services
Raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3. Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4. Research & Development
We usually research the new needs of the market and develop new models when there are new cars in the market.

5. Quality Control
Every step should be a special test by Professional Staff according to the standard of ISO9001 and TS16949.



FAQ
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of Cardan shafts.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artwork in PDF or AI format.

Q 3:How long is your delivery time?
Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples? Is it free or extra?
Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.

Q 6: What is the MOQ?
A: Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Q 9: What’s your payment?
A:1) T/T.

Welcome to contact us for more detailed information about Cardan shafts!

  /* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Standard Or Nonstandard: Nonstandard
Shaft Hole: as Your Requirement
Torque: as Your Requirement
Customization:
Available

|

Customized Request

.shipping-cost-tm .tm-status-off{background: none;padding:0;color: #1470cc}

Shipping Cost:

Estimated freight per unit.







about shipping cost and estimated delivery time.
Payment Method:









Initial Payment



Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.

pto shaft

Can drivelines be adapted for use in both automotive and industrial settings?

Drivelines can indeed be adapted for use in both automotive and industrial settings. While there are some differences in the specific requirements and design considerations between these two applications, many fundamental principles and components of drivelines remain applicable to both sectors. Let’s explore how drivelines can be adapted for use in automotive and industrial settings:

1. Power Transmission:

In both automotive and industrial applications, drivelines serve the purpose of transmitting power from a source (such as an engine or motor) to various driven components. The driveline components, including transmissions, clutches, differentials, and shafts, can be adapted and optimized based on the specific power requirements and operating conditions of each application. While automotive drivelines typically focus on delivering power for propulsion, industrial drivelines may transmit power to various machinery and equipment.

2. Gearboxes and Transmissions:

Both automotive and industrial drivelines often incorporate gearboxes or transmissions to provide multiple gear ratios for efficient power transfer. However, the gear ratios and design considerations may differ based on the specific requirements of each application. Automotive drivelines are typically optimized for a wide range of operating conditions, including varying speeds and loads. Industrial drivelines, on the other hand, may be designed to meet specific torque and speed requirements of industrial machinery.

3. Shaft and Coupling Systems:

Shafts and coupling systems are essential components of drivelines in both automotive and industrial settings. They transmit power between different components and allow for misalignment compensation. While automotive drivelines often use driveshafts and universal joints to transmit power to the wheels, industrial drivelines may employ shafts, couplings, and flexible couplings to connect various machinery components such as motors, pumps, and generators.

4. Differentiated Requirements:

Automotive and industrial drivelines have different operating conditions, load requirements, and environmental considerations. Automotive drivelines need to accommodate various road conditions, vehicle dynamics, and driver comfort. Industrial drivelines, on the other hand, may operate in more controlled environments but are subjected to specific industry requirements, such as high torque, continuous operation, or exposure to harsh conditions. The driveline components and materials can be adapted accordingly to meet these different requirements.

5. Control and Monitoring Systems:

Both automotive and industrial drivelines can benefit from advanced control and monitoring systems. These systems can optimize power distribution, manage gear shifts, monitor component health, and improve overall driveline efficiency. In automotive applications, electronic control units (ECUs) play a significant role in controlling driveline functions, while industrial drivelines may incorporate programmable logic controllers (PLCs) or other specialized control systems.

6. Customization and Integration:

Drivelines can be customized and integrated into specific automotive and industrial applications. Automotive drivelines can be tailored to meet the requirements of different vehicle types, such as passenger cars, trucks, or sports vehicles. Industrial drivelines can be designed to integrate seamlessly with specific machinery and equipment, considering factors such as available space, power requirements, and maintenance accessibility.

7. Maintenance and Service:

While the specific maintenance requirements may vary, both automotive and industrial drivelines require regular inspection, lubrication, and component replacement to ensure optimal performance and longevity. Proper maintenance practices, as discussed earlier, are essential for prolonging the lifespan of driveline components in both settings.

In summary, drivelines can be adapted for use in both automotive and industrial settings by considering the unique requirements and operating conditions of each application. While there are some differences in design considerations and component selection, the fundamental principles of power transmission and driveline functionality remain applicable in both sectors.

pto shaft

What safety precautions should be followed when working with driveline components?

Working with driveline components requires careful attention to safety to prevent accidents, injuries, and damage to equipment. Driveline components, such as transmissions, drive shafts, and differentials, can involve rotating parts, high torque, and heavy machinery, making it essential to follow proper safety precautions. Here are some important safety measures to consider when working with driveline components:

1. Personal Protective Equipment (PPE):

Always wear appropriate personal protective equipment, including safety glasses, gloves, and protective clothing. PPE helps protect against potential hazards such as flying debris, sharp edges, and contact with hot or moving parts. Use steel-toed safety boots to protect your feet from heavy objects or accidental impacts.

2. Lockout/Tagout:

Prior to working on driveline components, follow lockout/tagout procedures to ensure the equipment is properly shut down and isolated from its power source. Lockout/tagout involves disconnecting power, applying locks or tags to control switches, and verifying that the equipment is de-energized. This prevents accidental startup or release of stored energy that could cause serious injuries.

3. Vehicle/Equipment Stability:

Ensure that the vehicle or equipment is stable and securely supported before working on driveline components. Use appropriate jack stands or hoists to provide a stable and reliable support structure. Never rely solely on hydraulic jacks or unstable supports, as they can lead to accidents or equipment damage.

4. Proper Lifting Techniques:

When handling heavy driveline components, use proper lifting techniques to prevent strains or injuries. Lift with your legs, not your back, and get assistance when dealing with heavy or bulky components. Use mechanical lifting aids, such as hoists or cranes, when necessary to avoid overexertion or dropping components.

5. Component Inspection:

Prior to installation or maintenance, carefully inspect driveline components for any signs of damage, wear, or corrosion. Replace any worn or damaged parts to ensure safe and reliable operation. Follow the manufacturer’s guidelines and specifications for component inspection, maintenance, and replacement intervals.

6. Proper Tools and Equipment:

Use the correct tools and equipment for the job. Improper tools or makeshift solutions can lead to accidents, damaged components, or stripped fasteners. Follow the manufacturer’s recommendations for specialized tools or equipment needed for specific driveline components.

7. Follow Service Manuals and Procedures:

Refer to the relevant service manuals and follow proper procedures when working on driveline components. Service manuals provide step-by-step instructions, torque specifications, and safety precautions specific to the vehicle or equipment you are working on. Adhering to these guidelines ensures proper disassembly, installation, and adjustment of driveline components.

8. Proper Disposal of Fluids and Waste:

Dispose of fluids, such as oil or coolant, and waste materials in accordance with local regulations. Spilled fluids can create slip hazards, and improper disposal can harm the environment. Use appropriate containers and disposal methods as prescribed by local laws and regulations.

9. Training and Knowledge:

Ensure that individuals working with driveline components have received proper training and possess the necessary knowledge and skills. Inadequate training or lack of knowledge can lead to errors, accidents, or improper installation, compromising safety and performance.

10. Follow Workplace Safety Regulations:

Adhere to workplace safety regulations and guidelines established by relevant authorities. These regulations may include specific requirements for working with driveline components, such as safety standards, training requirements, and equipment certifications. Stay updated on safety regulations and ensure compliance to maintain a safe working environment.

By following these safety precautions, individuals can minimize the risk of accidents, injuries, and equipment damage when working with driveline components. Safety should always be a top priority to promote a secure and productive work environment.

pto shaft

How do drivelines handle variations in torque, speed, and angles of rotation?

Drivelines are designed to handle variations in torque, speed, and angles of rotation within a power transmission system. They incorporate specific components and mechanisms that enable the smooth and efficient transfer of power while accommodating these variations. Here’s a detailed explanation of how drivelines handle variations in torque, speed, and angles of rotation:

Variations in Torque:

Drivelines encounter variations in torque when the power requirements change, such as during acceleration, deceleration, or when encountering different loads. To handle these variations, drivelines incorporate several components:

1. Clutch: In manual transmission systems, a clutch is used to engage or disengage the engine’s power from the driveline. By partially or completely disengaging the clutch, the driveline can temporarily interrupt power transfer, allowing for smooth gear changes or vehicle stationary positions. This helps manage torque variations during shifting or when power demands change abruptly.

2. Torque Converter: Automatic transmissions employ torque converters, which are fluid couplings that transfer power from the engine to the transmission. Torque converters provide a certain amount of slip, allowing for torque multiplication and smooth power transfer. The slip in the torque converter helps absorb torque variations and dampens abrupt changes, ensuring smoother operation during acceleration or when power demands fluctuate.

3. Differential: The differential mechanism in drivelines compensates for variations in torque between the wheels, particularly during turns. When a vehicle turns, the inner and outer wheels travel different distances, resulting in different rotational speeds. The differential allows the wheels to rotate at different speeds while distributing torque to each wheel accordingly. This ensures that torque variations are managed and power is distributed effectively to optimize traction and stability.

Variations in Speed:

Drivelines also need to handle variations in rotational speed, especially when the engine operates at different RPMs or when different gear ratios are selected. The following components aid in managing speed variations:

1. Transmission: The transmission allows for the selection of different gear ratios, which influence the rotational speed of the driveline components. By changing gears, the transmission adjusts the speed at which power is transferred from the engine to the driveline. This allows the driveline to adapt to different speed requirements, whether it’s for quick acceleration or maintaining a consistent speed during cruising.

2. Gearing: Driveline systems often incorporate various gears in the transmission, differential, or axle assemblies. Gears provide mechanical advantage by altering the speed and torque relationship. By employing different gear ratios, the driveline can adjust the rotational speed and torque output to match the requirements of the vehicle under different operating conditions.

Variations in Angles of Rotation:

Drivelines must accommodate variations in angles of rotation, especially in vehicles with flexible or independent suspension systems. The following components help manage these variations:

1. Universal Joints: Universal joints, also known as U-joints, are flexible couplings used in drivelines to accommodate variations in angles and misalignments between components. They allow for smooth power transmission between the drive shaft and other components, compensating for changes in driveline angles during vehicle operation or suspension movement. Universal joints are particularly effective in handling non-linear or variable angles of rotation.

2. Constant Velocity Joints (CV Joints): CV joints are specialized joints used in drivelines, especially in front-wheel-drive and all-wheel-drive vehicles. They allow the driveline to handle variations in angles while maintaining a constant velocity during rotation. CV joints are designed to mitigate vibrations, power losses, and potential binding or juddering that can occur due to changes in angles of rotation.

By incorporating these components and mechanisms, drivelines effectively handle variations in torque, speed, and angles of rotation. These features ensure smooth power transfer, optimal performance, and enhanced durability in various driving conditions and operating scenarios.

China supplier CZPT SWC-CH Type Cardan Drive Shaft for Rolling Mill Drive LineChina supplier CZPT SWC-CH Type Cardan Drive Shaft for Rolling Mill Drive Line
editor by CX 2024-02-23

China Best Sales Weasler 55 Series Pto Shaft Replacement Farm Agricultural Tractor Driveline PTO Driveline

Product Description

Product Description

The PTO shaft of the Weasler 55 series is a special agricultural machinery component mainly used to connect the power output shaft and drive shaft of agricultural machinery, enabling it to output power externally. Due to its wide range of applications, it is not possible to list all agricultural machinery brand models applicable to this series.

However, the PTO shaft of the Weasler 55 series is typically suitable for many CHINAMFG agricultural machinery brands, including but not limited to John Deere, Case-IH, Stanley, Yangma,  and others. These brands have a wide range of product models, and the specific specifications and configurations of PTO shafts may also vary depending on the needs of different agricultural machinery and usage environments.

Product Parameters

Drivelines



  Shaft Size Tractor Yoke Overall Compressed  Length Dim A Max Length Implement yoke Application
140 0571 8 1 5/16″ 1 3/8″ × 6 Spl. Q.D. 48″ 72″
145710 1 5/16″ 1 3/8″ × 6 Spl. Q.D. 60″ 96″
1 11/16″ × 20 Spl. 1 3/8″ × 6 Spl. Q.D. 48″ 72″
1457158 1 11/16″ × 20 Spl.   58″ 92″
1405717 1 5/16″ Sq. 1 3/8″ × 6 Spl. Safety Slide Lock 37″ 50″ 1 3/8″ × 6 Spl. Safety Slide Lock All Purpose
140 0571 6 1 11/16″ × 20 Spl. 1 3/4″ × 20 Spl. Safety Slide Lock 46″ 68″ 1 3/4″ Rd. w/ Keyway and (2) Set Screws All Purpose





Related products

Cross Kit/ Universal Joint



Tube



Shaft Shield Guard



Yoke



Torque Limiter



PTO Spline & Adaptor & Hub

Universal Coupling



Wide Angle Joint





Company Profile

As a China PTO shaft manufacturer, we have the following advantages:

  • High quality products: We use the most advanced technology and materials to ensure that the PTO shafts we produce have excellent quality and durability.
  • Comprehensive product line: Our PTO shafts cover a variety of types and sizes to meet the needs of different customers.
  • Customized service: We can produce customized PTO shaft products according to the specific needs of customers, thereby ensuring that customer requirements are met.
  • Fast delivery time: Our production line operates efficiently and can quickly respond to customer needs, ensuring rapid delivery of PTO shaft products.
  • Professional technical support: We have a professional technical team that can provide customers with various technical support and consulting services to ensure that customers receive the best solution.



We welcome you to our PTO shaft production factory in China. We are 1 of the largest China PTO shaft manufacturers , focusing on providing customers with high-quality and high-performance PTO shaft. We are an experienced manufacturer dedicated to producing high-quality PTO shafts to help customers successfully complete their various projects.
We are committed to using the most advanced technology and equipment to ensure that the PTO shafts we produce have excellent quality and reliability, to ensure that customers receive the best performance and service life. Our team is composed of experienced professionals who can tailor the PTO shaft to the customer’s needs to best meet their specific requirements.
In addition, our factory has a strict quality management system to ensure that each PTO shaft meets industry standards and passes all necessary quality tests. We have first-class after-sales service and will make every effort to ensure customer satisfaction.
We look CHINAMFG to working with you and manufacturing high-quality PTO shafts for you to help your project achieve greater success. If you have any questions about our factory, please feel free to contact us.



/* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Carbon Steel
Load: Drive Shaft
Stiffness & Flexibility: Flexible Shaft
Journal Diameter Dimensional Accuracy: IT6-IT9
Axis Shape: Straight Shaft
Shaft Shape: Real Axis
Samples:
US$ 9999/Piece
1 Piece(Min.Order)

|
Request Sample

pto shaft

What factors should be considered when selecting the appropriate PTO driveline for an application?

When selecting the appropriate PTO (Power Take-Off) driveline for an application, several factors need to be considered to ensure optimal performance, efficiency, and safety. Here are some key factors to take into account:

1. Power Requirements:

– Determine the power requirements of the driven equipment. Consider the horsepower (HP) or kilowatt (kW) rating necessary to operate the equipment effectively. The PTO driveline should be capable of transmitting the required power without overloading or damaging the driveline components.

2. Speed and RPM:

– Identify the desired operating speed and RPM (Rotations Per Minute) of the driven equipment. The PTO driveline should be compatible with the required speed range to ensure efficient power transmission. Consider the maximum and minimum RPM ratings of the driveline and select one that matches the specific speed requirements of the application.

3. Torque Requirements:

– Determine the torque requirements of the driven equipment. Torque is the rotational force required to perform the intended task. Consider both the maximum and average torque demands during operation. Ensure that the selected PTO driveline can handle the torque levels without exceeding its maximum torque capacity or causing premature wear or failure.

4. Application Type:

– Consider the specific application and the type of equipment involved. Different applications may require different PTO driveline designs and features. For example, agricultural equipment such as mowers, balers, or tillers may benefit from a constant velocity (CV) PTO driveline to accommodate varying angles and speeds, while stationary equipment like generators or water pumps may use a non-constant velocity (non-CV) PTO driveline.

5. Safety Considerations:

– Evaluate the safety requirements of the application. Certain applications may require additional safety features such as shear bolts or slip clutches to protect against excessive loads, sudden obstructions, or torque spikes. Ensure that the selected PTO driveline incorporates the necessary safety mechanisms to prevent damage to the driveline and equipment, as well as to ensure the safety of operators and bystanders.

6. Durability and Maintenance:

– Consider the durability and maintenance requirements of the PTO driveline. Evaluate the quality and reliability of the driveline components, such as bearings, joints, and couplings. Choose a driveline that is built to withstand the demands of the application and requires minimal maintenance to ensure long-term performance and reduce downtime.

7. Compatibility:

– Ensure compatibility between the PTO driveline and the power source (e.g., tractor, engine). Consider the PTO driveline’s connection type, size (e.g., spline count, shaft diameter), and mounting configuration to ensure a proper fit and connection with the power source.

8. Environmental Conditions:

– Take into account the environmental conditions in which the PTO driveline will operate. Factors such as temperature extremes, exposure to moisture, dust, or chemicals can impact the driveline’s performance and longevity. Choose a driveline that is designed to withstand the specific environmental conditions of the application.

9. Manufacturer and Quality:

– Consider the reputation and reliability of the PTO driveline manufacturer. Opt for reputable manufacturers known for producing high-quality and durable driveline systems. Research customer reviews and seek recommendations from industry experts to ensure you choose a reliable and reputable brand.

By carefully considering these factors, you can select the most appropriate PTO driveline for your specific application. It is recommended to consult with manufacturers, industry experts, or equipment dealers to get further guidance and ensure the right driveline selection for your needs.

pto shaft

Can you provide examples of machinery that utilize PTO drivelines for power transmission?

PTO (Power Take-Off) drivelines are widely used in various agricultural and industrial applications to transmit power from a power source, such as a tractor or engine, to driven machinery. Here are several examples of machinery that commonly utilize PTO drivelines for power transmission:

1. Agricultural Equipment:

– Tractor Implements: Numerous agricultural implements rely on PTO drivelines to receive power for their operation. Examples include rotary cutters, flail mowers, disc harrows, tillers, seeders, fertilizer spreaders, sprayers, hay balers, hay rakes, and hay tedders. These implements connect to the PTO shaft of a tractor, harnessing its power to perform tasks such as cutting, tilling, sowing, fertilizing, spraying, baling, and raking.

– Harvesting Equipment: Machinery used in harvesting, such as combines, forage harvesters, and grain augers, often utilize PTO drivelines to power their cutting and conveying mechanisms. The PTO driveline powers components like the cutter heads, threshing systems, and grain handling equipment, allowing for efficient harvesting and processing of crops.

– Forage and Silage Equipment: Equipment used for forage and silage production, including forage choppers, silage blowers, and silage wagons, commonly incorporate PTO drivelines. The driveline provides power for cutting and chopping forage crops and conveying them into storage or transport units.

– Irrigation Systems: PTO-driven irrigation systems, such as irrigation pumps and sprinkler systems, utilize PTO drivelines to power the pumps and drive the water distribution mechanisms. The PTO driveline allows for efficient water supply and irrigation in agricultural fields.

2. Construction and Earthmoving Equipment:

– Earth Augers: Earth augers used in construction and landscaping applications often rely on PTO drivelines for power transmission. PTO-driven augers are used for digging holes and installing posts, fences, and foundations.

– Post Hole Diggers: Post hole diggers, commonly used in fencing and construction projects, utilize PTO drivelines for power transmission. The driveline powers the digging mechanism, allowing for efficient digging of holes for post installation.

3. Industrial Equipment:

– Wood Chippers: Wood chippers used in the forestry and landscaping industries often incorporate PTO drivelines for power transmission. The PTO driveline powers the cutting and chipping mechanisms, enabling efficient processing of branches, logs, and other woody materials.

– Generators: PTO-driven generators are commonly used as backup power sources or in remote locations where electrical power is not readily available. The PTO driveline powers the generator, converting mechanical power into electrical power.

– Stationary Pumps: PTO drivelines are utilized in stationary pumps, such as water pumps, slurry pumps, and trash pumps. The PTO driveline drives the pump, allowing for the efficient transfer or movement of liquids or slurry.

– Industrial Mixers: PTO-driven mixers are used in various industries, including agriculture, food processing, and construction. The PTO driveline powers the mixing mechanism, facilitating the blending or agitation of materials.

– Hay Grinders: Hay grinders or tub grinders used in the agricultural and livestock industries often incorporate PTO drivelines for power transmission. The driveline powers the grinding mechanism, allowing for the processing of hay, straw, and other forage materials.

4. Specialty Equipment:

– Ice Resurfacers: Ice resurfacing machines, commonly used in ice rinks and winter sports facilities, often utilize PTO drivelines for power transmission. The driveline powers the ice resurfacing mechanism, ensuring a smooth and level ice surface.

– Snowblowers: Snowblowers or snow throwers used in snow removal operations can be equipped with PTO drivelines to power their cutting and throwing mechanisms. The PTO driveline enables efficient snow clearing by propelling and discharging snow.

– Street Sweepers: PTO-driven street sweepers are used for cleaning streets, parking lots, and other paved surfaces. The PTO driveline powers the sweeping brushes and collection system, facilitating effective debris removal.

These examples demonstrate the wide range of machinery that utilize PTO drivelines for power transmission in various industries. PTO drivelines provide a versatile and efficient means of transferring power, allowing for the operation of diverse equipment with a common power source.

pto shaft

What is a PTO driveline and how does it function in agricultural and industrial machinery?

A PTO (Power Take-Off) driveline is a mechanical system used in agricultural and industrial machinery to transfer power from a power source, such as an engine or motor, to driven equipment or implements. It consists of several components that work together to transmit power efficiently and reliably. Let’s explore the key elements of a PTO driveline and how it functions in agricultural and industrial machinery:

1. Power Source:

The power source in a PTO driveline is typically an engine or motor, such as the one found in a tractor or industrial machine. It generates rotational power, which serves as the energy source for the entire system.

2. PTO Shaft:

The PTO shaft is a rotating shaft that extends from the power source to the driven equipment. It is designed to transmit power from the power source to the implement. The PTO shaft is connected to the power source at one end and to the driven equipment at the other end.

3. PTO Clutch:

The PTO clutch is a mechanism that allows the operator to engage or disengage the power transfer between the power source and the driven equipment. It is usually controlled by a lever or switch, enabling the operator to start or stop the power transmission as needed. The PTO clutch ensures that power is only transferred when required, providing control and safety during operation.

4. PTO Gearbox:

In some machinery, a PTO gearbox is used to adjust the speed and torque of the power transfer. The gearbox is situated between the power source and the PTO shaft. It contains a set of gears that can be switched or adjusted to modify the rotational speed and torque of the PTO shaft. This allows for the adaptation of power to suit different implements or tasks.

5. PTO Driven Equipment:

The driven equipment refers to the implements or machinery that receive power from the PTO driveline. In agricultural machinery, this can include equipment like plows, mowers, balers, seeders, and grain augers. In industrial machinery, it can involve devices such as pumps, generators, compressors, or conveyor systems. The PTO driveline provides the necessary power to drive these equipment and enable their intended functions.

Function in Agricultural Machinery:

In agricultural machinery, the PTO driveline plays a crucial role in powering various implements and equipment. When the PTO clutch is engaged, rotational power is transmitted from the tractor’s engine to the PTO shaft. The PTO shaft, in turn, transfers this power to the driven equipment, allowing it to perform its task. For example, a PTO-driven mower receives power through the PTO shaft, enabling it to rotate the cutting blades and mow the field. The PTO driveline provides a flexible and efficient means of powering agricultural implements, contributing to increased productivity and versatility in farming operations.

Function in Industrial Machinery:

In industrial machinery, the PTO driveline serves a similar purpose by transferring power from the main power source to various driven equipment. The PTO clutch is engaged to initiate power transfer, and the PTO shaft transmits rotational power to the driven equipment. This allows the equipment to perform its specific function. For example, in a pump application, the PTO driveline powers the pump, enabling it to generate fluid flow or pressure. In a conveyor system, the PTO driveline drives the conveyor belt, facilitating material transportation. The PTO driveline in industrial machinery ensures efficient power transmission, enabling the equipment to operate effectively in industrial settings.

Overall, the PTO driveline is a critical component in agricultural and industrial machinery, facilitating the transfer of power from a power source to driven equipment. By utilizing the PTO shaft, clutch, gearbox (if present), and other components, the PTO driveline provides a reliable and efficient means of power transmission, enhancing the functionality and performance of machinery in these sectors.

China Best Sales Weasler 55 Series Pto Shaft Replacement Farm Agricultural Tractor Driveline PTO Driveline  China Best Sales Weasler 55 Series Pto Shaft Replacement Farm Agricultural Tractor Driveline PTO Driveline
editor by CX 2024-02-22

China best CE Certificate Agricultural Machinery Potato Harvester Spare Parts Cardan Pto Drive Shaft and Farm Tractor Pto Shaft Drive Line

Product Description

CE Certificate Agricultural Machinery Potato Harvester Spare Parts Cardan Pto Drive Shaft and Farm Tractor Pto Shaft



Product Description



A Power Take-Off shaft (PTO shaft) is a mechanical device utilized to transmit power from a tractor or other power source to an attached implement, such as a mower, tiller, or baler. Typically situated at the rear of the tractor, the PTO shaft is driven by the tractor’s engine through the transmission.
The primary purpose of the PTO shaft is to supply a rotating power source to the implement, enabling it to carry out its intended function. To connect the implement to the PTO shaft, a universal joint is employed, allowing for movement between the tractor and the implement while maintaining a consistent power transfer.

Here is our advantages when compare to similar products from China:
1.Forged yokes make PTO shafts strong enough for usage and working;
2.Internal sizes standard to confirm installation smooth;
3.CE and ISO certificates to guarantee to quality of our goods;
4.Strong and professional package to confirm the good situation when you receive the goods.

Product Specifications



In farming, the most common way to transmit power from a tractor to an implement is by a driveline, connected to the PTO (Power Take Off) of the tractor to the IIC(Implement Input Connection). Drivelines are also commonly connected to shafts within the implement to transmit power to various mechanisms.
The following dimensions of the PTO types are available.
Type B:13/8″Z6(540 min)
Type D:13/8″Z21(1000 min)
Coupling a driveline to a PTO should be quick and simple because in normal use tractors must operate multiple implements. Consequently, yokes on the tractor-end of the driveline are fitted with a quick-disconnect system, such as push-pin or ball collar.
Specifications for a driveline, including the way it is coupled to a PTO, depend CZPT the implement.
Yokes on the llc side are rarely disconnected and may be fastened by quick-lock couplings (push-pin or ball collar).
Taper pins are the most stable connection for splined shafts and are commonly used in yokes and torque limiters. Taper pins are also often used to connect internal drive shafts on drivelines that are not frequently disconnected.
Torque limiter and clutches must always be installed on the implement side of the primary driveline.



Packaging & Shipping







Company Profile

HangZhou Hanon Technology Co.,ltd is a modern enterprise specilizing in the development,production,sales and services of Agricultural Parts like PTO shaft and Gearboxes and Hydraulic parts like  Cylinder , Valve ,Gearpump and motor etc..
We adhere to the principle of ” High Quality, Customers’Satisfaction”, using advanced technology and equipments to ensure all the technical standards of transmission .We follow the principle of people first , trying our best to set up a pleasant surroundings and platform of performance for each employee. So everyone can be self-consciously active to join Hanon Machinery.

FAQ

1.WHAT’S THE PAYMENT TERM?

When we quote for you,we will confirm with you the way of transaction,FOB,CIFetc.<br> For mass production goods, you need to pay 30% deposit before producing and70% balance against copy of documents.The most common way is by T/T.

2.HOW TO DELIVER THE GOODS TO US?

Usually we will ship the goods to you by sea.

3.HOE LONG IS YOUR DELIVERY TIME AND SHIPMENT?

30-45days.

Other Products

  /* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Type: Pto Shaft
Usage: Agricultural Products Processing, Farmland Infrastructure, Tillage, Harvester, Planting and Fertilization, Grain Threshing, Cleaning and Drying, Agricultural Machinery,Farm Tractor
Material: 45cr Steel
Samples:
US$ 20/Piece
1 Piece(Min.Order)

|

Order Sample

Customization:
Available

|

Customized Request

.shipping-cost-tm .tm-status-off{background: none;padding:0;color: #1470cc}

Shipping Cost:

Estimated freight per unit.







about shipping cost and estimated delivery time.
Payment Method:









Initial Payment



Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.

pto shaft

How do drivelines ensure optimal power transfer while minimizing energy losses?

Drivelines play a crucial role in ensuring optimal power transfer from the engine to the wheels while minimizing energy losses. The design and components of the driveline system are carefully engineered to maximize efficiency and minimize power wastage. Here are some key factors that contribute to achieving optimal power transfer and minimizing energy losses within a driveline:

1. Efficient Power Transmission:

Drivelines utilize various components, such as transmissions, clutches, and torque converters, to transmit power from the engine to the wheels. These components are designed to minimize energy losses by reducing friction, improving gear mesh efficiency, and optimizing torque transfer. For example, using low-friction materials, such as roller bearings, and employing advanced gear designs, like helical or hypoid gears, can help reduce power losses due to friction and gear meshing.

2. Gear Ratio Optimization:

The selection of appropriate gear ratios is essential for achieving optimal power transfer. By choosing gear ratios that match the engine’s power characteristics and the vehicle’s driving conditions, the driveline can efficiently convert and transmit power to the wheels. Optimized gear ratios ensure that the engine operates within its optimal RPM range, reducing unnecessary power losses and improving overall efficiency.

3. Limited Slip Differentials:

In driveline systems with multiple driven wheels (such as all-wheel drive or four-wheel drive), limited slip differentials (LSDs) are often employed to distribute power between the wheels. LSDs allow for better traction by transferring torque to the wheels with more grip while minimizing energy losses. By allowing some degree of differential wheel speed, LSDs ensure power is efficiently transmitted to the wheels that can utilize it most effectively.

4. Hybrid and Electric Drivetrains:

In hybrid and electric drivetrains, driveline systems are designed to optimize power transfer and minimize energy losses specific to the characteristics of electric motors and energy storage systems. These drivetrains often utilize sophisticated power electronics, regenerative braking systems, and advanced control algorithms to efficiently manage power flow and energy regeneration, resulting in improved overall system efficiency.

5. Aerodynamic Considerations:

Drivelines can also contribute to optimal power transfer by considering aerodynamic factors. By minimizing air resistance through streamlined vehicle designs, efficient cooling systems, and appropriate underbody airflow management, drivelines help reduce the power required to overcome aerodynamic drag. This, in turn, improves overall driveline efficiency and minimizes energy losses.

6. Advanced Control Systems:

The integration of advanced control systems within drivelines allows for optimized power transfer and efficient operation. Electronic control units (ECUs) monitor various parameters such as throttle position, vehicle speed, and driving conditions to adjust power distribution, manage gear shifts, and optimize torque delivery. By continuously adapting to real-time conditions, these control systems help maximize power transfer efficiency and minimize energy losses.

7. Material Selection and Weight Reduction:

The choice of materials and weight reduction strategies in driveline components contribute to minimizing energy losses. Lightweight materials, such as aluminum or composites, reduce the overall weight of the driveline system, resulting in reduced inertia and lower power requirements. Additionally, reducing the weight of rotating components, such as driveshafts or flywheels, helps improve driveline efficiency by minimizing energy losses associated with rotational inertia.

8. Regular Maintenance and Lubrication:

Proper maintenance and lubrication of driveline components are essential for minimizing energy losses. Regular maintenance ensures that driveline components, such as bearings and gears, are in optimal condition, minimizing frictional losses. Additionally, using high-quality lubricants and maintaining appropriate lubrication levels reduces friction and wear, improving driveline efficiency.

By incorporating these design considerations and engineering techniques, drivelines can achieve optimal power transfer while minimizing energy losses. This leads to improved overall efficiency, enhanced fuel economy, and reduced environmental impact.

pto shaft

Are there any limitations or disadvantages associated with driveline systems?

While driveline systems offer numerous advantages in terms of power transmission and vehicle performance, there are also some limitations and disadvantages associated with their use. It’s important to consider these factors when designing, operating, and maintaining driveline systems. Let’s explore some of the limitations and disadvantages:

1. Complex Design and Integration:

Driveline systems can be complex in design, especially in modern vehicles with advanced technologies. They often consist of multiple components, such as transmissions, differentials, transfer cases, and drive shafts, which need to be properly integrated and synchronized. The complexity of the driveline system can increase manufacturing and assembly challenges, as well as the potential for compatibility issues or failures if not designed and integrated correctly.

2. Energy Losses:

Driveline systems can experience energy losses during power transmission. These losses occur due to factors such as friction, heat generation, mechanical inefficiencies, and fluid drag in components like gearboxes, differentials, and torque converters. The energy losses can negatively impact overall efficiency and result in reduced fuel economy or power output, especially in systems with multiple driveline components.

3. Limited Service Life and Maintenance Requirements:

Driveline components, like any mechanical system, have a limited service life and require regular maintenance. Components such as clutches, bearings, gears, and drive shafts are subject to wear and tear, and may need to be replaced or repaired over time. Regular maintenance, including lubrication, adjustments, and inspections, is necessary to ensure optimal performance and prevent premature failures. Failure to perform proper maintenance can lead to driveline malfunctions, increased downtime, and costly repairs.

4. Weight and Space Constraints:

Driveline systems add weight and occupy space within a vehicle. The additional weight affects fuel efficiency and overall vehicle performance. Moreover, the space occupied by driveline components can limit design flexibility, particularly in compact or electric vehicles where space optimization is crucial. Manufacturers must strike a balance between driveline performance, vehicle weight, and available space to meet the requirements of each specific vehicle type.

5. Noise, Vibration, and Harshness (NVH):

Driveline systems can generate noise, vibration, and harshness (NVH) during operation. Factors such as gear meshing, unbalanced rotating components, or improper driveline alignment can contribute to unwanted vibrations or noise. NVH issues can affect driving comfort, passenger experience, and vehicle refinement. Manufacturers employ various techniques, including vibration dampening materials, isolators, and precision engineering, to minimize NVH levels, but achieving complete elimination can be challenging.

6. Limited Torque Handling Capability:

Driveline systems have limitations in terms of torque handling capability. Excessive torque beyond the rated capacity of driveline components can lead to failures, such as shearing of gears, clutch slippage, or drive shaft breakage. High-performance vehicles or heavy-duty applications may require specialized driveline components capable of handling higher torque loads, which can increase costs and complexity.

7. Traction Limitations:

Driveline systems, particularly in vehicles with two-wheel drive configurations, may experience traction limitations, especially in slippery or off-road conditions. Power is typically transmitted to only one or two wheels, which can result in reduced traction and potential wheel slippage. This limitation can be mitigated by utilizing technologies such as limited-slip differentials, electronic traction control, or implementing all-wheel drive systems.

While driveline systems provide crucial power transmission and vehicle control, they do have limitations and disadvantages that need to be considered. Manufacturers, designers, and operators should carefully assess these factors and implement appropriate design, maintenance, and operational practices to optimize driveline performance, reliability, and overall vehicle functionality.

pto shaft

Can you explain the components of a typical driveline and their specific roles?

A typical driveline consists of several components that work together to transmit power from the engine or power source to the driven components, enabling motion and providing torque. Each component plays a specific role in the driveline system. Here’s an explanation of the key components of a typical driveline and their specific roles:

1. Engine: The engine is the power source of the driveline system. It converts fuel energy (such as gasoline or diesel) into mechanical power by the process of combustion. The engine generates rotational power, which is transferred to the driveline to initiate power transmission.

2. Transmission: The transmission is responsible for selecting the appropriate gear ratio and transmitting power from the engine to the driven components. It allows the driver or operator to control the speed and torque output of the driveline. In manual transmissions, the driver manually selects the gears, while in automatic transmissions, the gear shifts are controlled by the vehicle’s computer system.

3. Drive Shaft: The drive shaft, also known as a propeller shaft or prop shaft, is a tubular component that transmits rotational power from the transmission to the differential or the driven components. It typically consists of a hollow metal tube with universal joints at both ends to accommodate variations in driveline angles and allow for smooth power transfer.

4. Differential: The differential is a gearbox-like component that distributes power from the drive shaft to the wheels or driven axles while allowing them to rotate at different speeds, particularly during turns. It compensates for the difference in rotational speed between the inner and outer wheels in a turn, ensuring smooth and controlled operation of the driveline system.

5. Axles: Axles are shafts that connect the differential to the wheels. They transmit power from the differential to the wheels, allowing them to rotate and generate motion. In vehicles with independent suspension, each wheel typically has its own axle, while in solid axle configurations, a single axle connects both wheels on an axle assembly.

6. Clutch: In manual transmission systems, a clutch is employed to engage or disengage the engine’s power from the driveline. It allows the driver to smoothly engage the engine’s power to the transmission when shifting gears or coming to a stop. By disengaging the clutch, power transmission to the driveline is temporarily interrupted, enabling gear changes or vehicle stationary positions.

7. Torque Converter: Torque converters are used in automatic transmissions to transfer power from the engine to the transmission. They provide a fluid coupling between the engine and transmission, allowing for smooth power transmission and torque multiplication. The torque converter also provides a torque amplification effect, which helps in vehicle acceleration.

8. Universal Joints: Universal joints, also known as U-joints, are flexible couplings used in the driveline to accommodate variations in angles and misalignments between the components. They allow for the smooth transmission of power between the drive shaft and other components, compensating for changes in driveline angles during vehicle operation or suspension movement.

9. Constant Velocity Joints (CV Joints): CV joints are specialized joints used in some drivelines, particularly in front-wheel-drive and all-wheel-drive vehicles. They enable smooth power transmission while accommodating variations in angles and allowing the wheels to turn at different speeds. CV joints maintain a constant velocity during rotation, minimizing vibrations and power losses.

10. Transfer Case: A transfer case is a component found in four-wheel-drive and all-wheel-drive systems. It transfers power from the transmission to both the front and rear axles, allowing all wheels to receive power. The transfer case usually includes additional components such as a multi-speed gearbox and differential mechanisms to distribute power effectively to the axles.

These are the key components of a typical driveline and their specific roles. Each component is crucial in transferring power, enabling motion, and ensuring the smooth and efficient operation of vehicles and equipment.

China best CE Certificate Agricultural Machinery Potato Harvester Spare Parts Cardan Pto Drive Shaft and Farm Tractor Pto Shaft Drive LineChina best CE Certificate Agricultural Machinery Potato Harvester Spare Parts Cardan Pto Drive Shaft and Farm Tractor Pto Shaft Drive Line
editor by CX 2024-02-22

China Best Sales Agricultural Cardan Shafts Type and Cultivators Use Pto Shaft PTO Driveline

Product Description

Specification OF PTO Drive Shaft —Speedway:

We developed and produced many tractor spare parts for Japanese Tractors .

Product Name:  Japanese tractor transmission clutch disc parts for B1400 B7000

Tractor Model we can supply: B1500/1400,B5000,B6000, B7000, TU1400, TX1400, TX1500, YM F1401, YM1400 ETC.

The parts for example: Tyres, rim Jante, Kit coupling KB-TX 3 point linkage. Exhaust pipe Steering wheel. Kit coupling YM F14/F15, gear shaft, PTO shaft, PTO cardan, key, regulator ect.

Most of the spare parts are with stock. If you are interested in, please feel easy to contact me.


Other relevant parts for cars or machinery we have made in our workshop are as follows:
Drive shaft parts and assemblies,
Universal joint parts and assemblies,
PTO drive shafts,
Spline shafts,
Slip yokes,
Weld yokes,
Flange yokes,
Steering columns,
Connecting rods,
etc.

Product Description

 Pto Drive Shaft  Item:

Item Cross journal  size 540dak-rpm 1000dak-rpm
Series 1 22mm 54mm 12KW 16HP 18KW 25HP
Series 2 23.8mm 61.3mm 15KW 21HP 23KW 31HP
Series 3 27mm 70mm 26KW 35HP 40KW 55HP
Series 4 27mm 74.6mm 26KW 35HP 40KW 55HP
Series 5 30.2mm 80mm 35KW 47HP 54KW 74HP
Series 6 30.2mm 92mm 47KW 64HP 74KW 100HP
Series 7 30.2mm 106.5mm 55KW 75HP 87KW 18HP
Series 8 35mm 106.5mm



70KW 95HP 110KW 150HP
Series 38 38mm 102mm 70KW 95HP 110KW 150HP


Company Profile

Certifications



FAQ

/* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Type: Shaft
Usage: Agricultural Products Processing, Farmland Infrastructure, Harvester, Planting and Fertilization, Grain Threshing, Cleaning and Drying
Material: Stainless Steel
Power Source: Pto Dirven Shaft
Weight: Standard
After-sales Service: 1 Year
Samples:
US$ 300/Piece
1 Piece(Min.Order)

|
Request Sample

pto shaft

What maintenance practices are crucial for extending the lifespan of PTO driveline components?

Proper maintenance is essential for extending the lifespan of PTO (Power Take-Off) driveline components and ensuring their optimal performance. By following these crucial maintenance practices, you can minimize wear and tear, prevent premature failures, and maximize the longevity of your PTO driveline:

1. Regular Inspection:

– Conduct regular visual inspections of the entire PTO driveline assembly. Look for signs of damage, wear, or loose components. Pay close attention to the driveline shaft, universal joints, bearings, and couplings. Detecting early signs of wear or damage allows for timely repairs or replacements, preventing further damage and ensuring the longevity of the driveline components.

2. Lubrication:

– Proper lubrication is crucial for the smooth operation and longevity of PTO driveline components. Follow the manufacturer’s recommendations for lubricating the driveline, including the type of lubricant and the recommended intervals. Ensure that all lubrication points, such as universal joints and bearings, receive adequate grease or oil. Regular lubrication minimizes friction, reduces wear, and helps maintain the driveline’s efficiency and reliability.

3. Tightening and Fastener Checks:

– Periodically check and tighten all fasteners, such as bolts, nuts, and set screws, within the PTO driveline assembly. Vibrations and continuous operation can cause these fasteners to loosen over time, potentially leading to misalignment or damage. Regularly inspecting and tightening the fasteners ensures that the driveline remains securely connected, reducing the risk of component failure or disengagement during operation.

4. Balance and Alignment:

– Proper balance and alignment of the PTO driveline components are crucial for reducing vibrations, minimizing stress, and extending component life. Inspect and correct any imbalances or misalignments in the driveline components, including the driveline shaft and universal joints. Imbalances or misalignments can cause excessive wear on bearings, joints, and other driveline parts. Addressing these issues through proper balancing and alignment ensures smoother operation and prolongs the lifespan of the driveline.

5. Protection from Contaminants:

– Protecting the PTO driveline components from contaminants, such as dirt, debris, and moisture, is essential for preventing corrosion, premature wear, and damage. Clean the driveline regularly, removing any accumulated dirt or debris. Consider using protective covers or shields to minimize exposure to moisture and other environmental elements. Additionally, store the driveline in a clean and dry environment when not in use. Keeping the driveline components clean and protected helps maintain their performance and extends their lifespan.

6. Proper Usage and Handling:

– Follow the recommended usage guidelines provided by the manufacturer to ensure the driveline components are not subjected to excessive loads, speeds, or angles beyond their design capabilities. Avoid overloading the driveline or using it with incompatible equipment. Properly engage and disengage the PTO driveline according to the manufacturer’s instructions to prevent abrupt shocks or excessive wear. Handling the driveline with care and following proper usage practices reduces stress on the components and contributes to their longevity.

7. Prompt Repairs:

– Address any signs of damage, wear, or malfunction promptly. If you notice unusual vibrations, noise, or any other abnormal behavior during operation, investigate and address the issue as soon as possible. Delaying repairs or ignoring potential problems can lead to further damage and more extensive repairs down the line. Timely repairs help prevent component failures and extend the overall lifespan of the PTO driveline.

8. Professional Maintenance:

– For more complex maintenance tasks or when in doubt, consider seeking professional assistance. Experienced technicians or authorized service centers can provide thorough inspections, perform specialized maintenance procedures, and offer expert advice on maintaining the PTO driveline components. Professional maintenance ensures that the driveline receives the necessary care and attention to maximize its lifespan and performance.

By implementing these crucial maintenance practices, you can significantly extend the lifespan of PTO driveline components. Regular inspections, proper lubrication, tightening and fastener checks, balance and alignment, protection from contaminants, proper usage and handling, prompt repairs, and seeking professional maintenance when needed are key to preserving the driveline’s longevity and optimizing its performance.

pto shaft

How do PTO drivelines handle fluctuations in load and torque during operation?

PTO (Power Take-Off) drivelines are designed to handle fluctuations in load and torque during operation to ensure efficient power transfer and protect the driveline components. Here are the key aspects of how PTO drivelines handle these fluctuations:

1. Torque Limiting Devices:

– PTO drivelines often incorporate torque limiting devices to protect against excessive torque and sudden fluctuations in load. These devices, such as shear pins, slip clutches, or overload clutches, are designed to disconnect or slip when the torque exceeds a predetermined limit. By disengaging or slipping, these devices prevent damage to the driveline components and the connected machinery. Once the torque returns to a safe level, the driveline can resume normal operation.

2. Torque Converters:

– Some PTO drivelines utilize torque converters to handle fluctuations in load and torque. Torque converters are fluid coupling devices that provide a smooth and gradual transfer of torque. They can absorb and dampen sudden changes in load, providing a buffer between the power source and the driven equipment. Torque converters can help minimize stress on the driveline components and reduce the impact of load fluctuations on the overall system.

3. Spring-Loaded Tensioners:

– PTO drivelines often incorporate spring-loaded tensioners to maintain proper tension in the driveline. These tensioners ensure that the driveline remains engaged and properly aligned during operation, even when there are fluctuations in load or torque. The spring-loaded mechanism allows the tensioner to automatically adjust and compensate for changes in tension, helping to minimize slack and ensure consistent power transmission.

4. Robust Driveline Components:

– PTO driveline components, such as shafts, universal joints, and yokes, are designed to be robust and capable of handling fluctuations in load and torque. They are typically manufactured using high-strength materials and undergo rigorous testing to ensure durability and performance. The driveline components are engineered to withstand the anticipated loads and torque variations encountered during operation, reducing the risk of failures or premature wear.

5. Proper Lubrication:

– Adequate lubrication of the driveline components is essential for handling load and torque fluctuations. Proper lubrication helps reduce friction, dissipate heat, and maintain smooth operation even under varying loads. Lubrication also contributes to the longevity and reliability of the driveline components by minimizing wear and preventing damage due to excessive friction. Regular lubrication maintenance according to the manufacturer’s recommendations is crucial for optimal performance.

6. Operator Skill and Awareness:

– The operator’s skill and awareness play a significant role in handling load and torque fluctuations in PTO drivelines. Operators should be trained to operate the equipment within safe load limits and to anticipate and respond to changes in load or torque. Proper monitoring of the equipment during operation can help identify any abnormal fluctuations and take appropriate action to prevent damage to the driveline components.

7. System Design and Engineering:

– PTO drivelines are designed and engineered with load and torque fluctuations in mind. System designers analyze the expected operating conditions and select appropriate driveline components and configurations to ensure reliable performance. Factors such as the anticipated load variations, duty cycles, and equipment requirements are considered during the design phase to create a driveline system that can handle the expected fluctuations in load and torque.

In summary, PTO drivelines handle fluctuations in load and torque through the use of torque limiting devices, torque converters, spring-loaded tensioners, robust driveline components, proper lubrication, operator skill and awareness, and thoughtful system design. These features and considerations contribute to the safe and efficient operation of PTO drivelines, allowing them to adapt to changing load conditions while protecting the driveline components and the connected machinery.

pto shaft

What is a PTO driveline and how does it function in agricultural and industrial machinery?

A PTO (Power Take-Off) driveline is a mechanical system used in agricultural and industrial machinery to transfer power from a power source, such as an engine or motor, to driven equipment or implements. It consists of several components that work together to transmit power efficiently and reliably. Let’s explore the key elements of a PTO driveline and how it functions in agricultural and industrial machinery:

1. Power Source:

The power source in a PTO driveline is typically an engine or motor, such as the one found in a tractor or industrial machine. It generates rotational power, which serves as the energy source for the entire system.

2. PTO Shaft:

The PTO shaft is a rotating shaft that extends from the power source to the driven equipment. It is designed to transmit power from the power source to the implement. The PTO shaft is connected to the power source at one end and to the driven equipment at the other end.

3. PTO Clutch:

The PTO clutch is a mechanism that allows the operator to engage or disengage the power transfer between the power source and the driven equipment. It is usually controlled by a lever or switch, enabling the operator to start or stop the power transmission as needed. The PTO clutch ensures that power is only transferred when required, providing control and safety during operation.

4. PTO Gearbox:

In some machinery, a PTO gearbox is used to adjust the speed and torque of the power transfer. The gearbox is situated between the power source and the PTO shaft. It contains a set of gears that can be switched or adjusted to modify the rotational speed and torque of the PTO shaft. This allows for the adaptation of power to suit different implements or tasks.

5. PTO Driven Equipment:

The driven equipment refers to the implements or machinery that receive power from the PTO driveline. In agricultural machinery, this can include equipment like plows, mowers, balers, seeders, and grain augers. In industrial machinery, it can involve devices such as pumps, generators, compressors, or conveyor systems. The PTO driveline provides the necessary power to drive these equipment and enable their intended functions.

Function in Agricultural Machinery:

In agricultural machinery, the PTO driveline plays a crucial role in powering various implements and equipment. When the PTO clutch is engaged, rotational power is transmitted from the tractor’s engine to the PTO shaft. The PTO shaft, in turn, transfers this power to the driven equipment, allowing it to perform its task. For example, a PTO-driven mower receives power through the PTO shaft, enabling it to rotate the cutting blades and mow the field. The PTO driveline provides a flexible and efficient means of powering agricultural implements, contributing to increased productivity and versatility in farming operations.

Function in Industrial Machinery:

In industrial machinery, the PTO driveline serves a similar purpose by transferring power from the main power source to various driven equipment. The PTO clutch is engaged to initiate power transfer, and the PTO shaft transmits rotational power to the driven equipment. This allows the equipment to perform its specific function. For example, in a pump application, the PTO driveline powers the pump, enabling it to generate fluid flow or pressure. In a conveyor system, the PTO driveline drives the conveyor belt, facilitating material transportation. The PTO driveline in industrial machinery ensures efficient power transmission, enabling the equipment to operate effectively in industrial settings.

Overall, the PTO driveline is a critical component in agricultural and industrial machinery, facilitating the transfer of power from a power source to driven equipment. By utilizing the PTO shaft, clutch, gearbox (if present), and other components, the PTO driveline provides a reliable and efficient means of power transmission, enhancing the functionality and performance of machinery in these sectors.

China Best Sales Agricultural Cardan Shafts Type and Cultivators Use Pto Shaft PTO Driveline  China Best Sales Agricultural Cardan Shafts Type and Cultivators Use Pto Shaft PTO Driveline
editor by CX 2024-02-21

China Good quality Machinery Parts Rotor Gear Shaft Customized Machining Knurling High Precision with Factory Price for Auto Drive Factory Price Drive Line

Product Description

You can kindly find the specification details below:

HangZhou Mastery Machinery Technology Co., LTD helps manufacturers and brands fulfill their machinery parts by precision manufacturing. High precision machinery products like the shaft, worm screw, bushing, couplings, joints……Our products are used widely in electronic motors, the main shaft of the engine, the transmission shaft in the gearbox, couplers, printers, pumps, drones, and so on. They cater to different industries, including automotive, industrial, power tools, garden tools, healthcare, smart home, etc.

Mastery caters to the industrial industry by offering high-level Cardan shafts, pump shafts, and a bushing that come in different sizes ranging from diameter 3mm-50mm. Our products are specifically formulated for transmissions, robots, gearboxes, industrial fans, and drones, etc.

Mastery factory currently has more than 100 main production equipment such as CNC lathe, CNC machining center, CAM Automatic Lathe, grinding machine, hobbing machine, etc. The production capacity can be up to 5-micron mechanical tolerance accuracy, automatic wiring machine processing range covering 3mm-50mm diameter bar.

Key Specifications:

Name Shaft/Motor Shaft/Drive Shaft/Gear Shaft/Pump Shaft/Worm Screw/Worm Gear/Bushing/Ring/Joint/Pin
Material 40Cr/35C/GB45/70Cr/40CrMo
Process Machining/Lathing/Milling/Drilling/Grinding/Polishing
Size 2-400mm(Customized)
Diameter φ12(Customized)
Diameter Tolerance 0.008mm
Roundness 0.01mm
Roughness Ra0.4
Straightness 0.01mm
Hardness Customized
Length 32mm(Customized)
Heat Treatment Customized
Surface treatment Coating/Ni plating/Zn plating/QPQ/Carbonization/Quenching/Black Treatment/Steaming Treatment/Nitrocarburizing/Carbonitriding

Quality Management:

  • Raw Material Quality Control: Chemical Composition Analysis, Mechanical Performance Test, ROHS, and Mechanical Dimension Check
  • Production Process Quality Control: Full-size inspection for the 1st part, Critical size process inspection, SPC process monitoring
  • Lab ability: CMM, OGP, XRF, Roughness meter, Profiler, Automatic optical inspector
  • Quality system: ISO9001, IATF 16949, ISO14001
  • Eco-Friendly: ROHS, Reach.

Packaging and Shipping:

Throughout the entire process of our supply chain management, consistent on-time delivery is vital and very important for the success of our business.

Mastery utilizes several different shipping methods that are detailed below:

For Samples/Small Q’ty: By Express Services or Air Fright.

For Formal Order: By Sea or by air according to your requirement.



Mastery Services:

  • One-Stop solution from idea to product/ODM&OEM acceptable
  • Individual research and sourcing/purchasing tasks
  • Individual supplier management/development, on-site quality check projects
  • Muti-varieties/small batch/customization/trial orders are acceptable
  • Flexibility on quantity/Quick samples
  • Forecast and raw material preparation in advance are negotiable
  • Quick quotes and quick responses

General Parameters:

If you are looking for a reliable machinery product partner, you can rely on Mastery. Work with us and let us help you grow your business using our customizable and affordable products. /* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Carbon Steel
Load: Drive Shaft
Stiffness & Flexibility: Stiffness / Rigid Axle
Journal Diameter Dimensional Accuracy: IT6-IT9
Axis Shape: Straight Shaft
Shaft Shape: Real Axis
Customization:
Available

|

Customized Request

pto shaft

What factors should be considered when designing an efficient driveline system?

Designing an efficient driveline system involves considering various factors that contribute to performance, reliability, and overall system efficiency. Here are the key factors that should be considered when designing an efficient driveline system:

1. Power Requirements:

The power requirements of the vehicle play a crucial role in designing an efficient driveline system. It is essential to determine the maximum power output of the engine and ensure that the driveline components can handle and transfer that power efficiently. Optimizing the driveline for the specific power requirements helps minimize energy losses and maximize overall efficiency.

2. Weight and Packaging:

The weight and packaging of the driveline components have a significant impact on system efficiency. Lightweight materials and compact design help reduce the overall weight of the driveline, which can improve fuel efficiency and vehicle performance. Additionally, efficient packaging ensures that driveline components are properly integrated, minimizing energy losses and maximizing available space within the vehicle.

3. Friction and Mechanical Losses:

Minimizing friction and mechanical losses within the driveline system is crucial for achieving high efficiency. Frictional losses occur at various points, such as bearings, gears, and joints. Selecting low-friction materials, optimizing lubrication systems, and implementing efficient bearing designs can help reduce these losses. Additionally, employing advanced gear designs, such as helical or hypoid gears, can improve gear mesh efficiency and reduce power losses.

4. Gear Ratios and Transmission Efficiency:

The selection of appropriate gear ratios and optimizing transmission efficiency greatly impacts driveline efficiency. Gear ratios should be chosen to match the vehicle’s power requirements, driving conditions, and desired performance characteristics. In addition, improving the efficiency of the transmission, such as reducing gear mesh losses and enhancing hydraulic or electronic control systems, can contribute to overall driveline efficiency.

5. Aerodynamic Considerations:

Aerodynamics play a significant role in a vehicle’s overall efficiency, including the driveline system. Reducing aerodynamic drag through streamlined vehicle design, efficient cooling systems, and appropriate underbody airflow management can enhance driveline efficiency by reducing the power required to overcome air resistance.

6. System Integration and Control:

Efficient driveline design involves seamless integration and control of various components. Employing advanced control systems, such as electronic control units (ECUs), can optimize driveline operation by adjusting power distribution, managing gear shifts, and optimizing torque delivery based on real-time driving conditions. Effective system integration ensures smooth communication and coordination between driveline components, improving overall efficiency.

7. Environmental Considerations:

Environmental factors should also be taken into account when designing an efficient driveline system. Considerations such as emissions regulations, sustainability goals, and the use of alternative power sources (e.g., hybrid or electric drivetrains) can influence driveline design decisions. Incorporating technologies like regenerative braking or start-stop systems can further enhance efficiency and reduce environmental impact.

8. Reliability and Durability:

Designing an efficient driveline system involves ensuring long-term reliability and durability. Selecting high-quality materials, performing thorough testing and validation, and considering factors such as thermal management and component durability help ensure that the driveline system operates efficiently over its lifespan.

By considering these factors during the design process, engineers can develop driveline systems that are optimized for efficiency, performance, and reliability, resulting in improved fuel economy, reduced emissions, and enhanced overall vehicle efficiency.

pto shaft

Can driveline components be customized for specific vehicle or equipment requirements?

Yes, driveline components can be customized to meet specific vehicle or equipment requirements. Manufacturers and suppliers offer a range of options for customization to ensure optimal performance, compatibility, and integration with different vehicles or equipment. Customization allows for tailoring the driveline components to specific powertrain configurations, operating conditions, torque requirements, and space constraints. Let’s explore the details of customization for driveline components:

1. Powertrain Configuration:

Driveline components can be customized to accommodate different powertrain configurations. Whether it’s a front-wheel drive, rear-wheel drive, or all-wheel drive system, manufacturers can design and provide specific components such as differentials, gearboxes, and drive shafts that are compatible with the required power distribution and torque transfer characteristics of the particular configuration.

2. Torque Capacity:

Driveline components can be customized to handle specific torque requirements. Different vehicles or equipment may have varying torque outputs based on their intended applications. Manufacturers can engineer and produce driveline components with varying torque-handling capabilities to ensure reliable and efficient power transmission for a range of applications, from passenger vehicles to heavy-duty trucks or machinery.

3. Size and Configuration:

Driveline components can be customized in terms of size, shape, and configuration to fit within the space constraints of different vehicles or equipment. Manufacturers understand that each application may have unique packaging limitations, such as limited available space or specific mounting requirements. Through customization, driveline components can be designed and manufactured to align with these specific dimensional and packaging constraints.

4. Material Selection:

The choice of materials for driveline components can be customized based on the required strength, weight, and durability characteristics. Different vehicles or equipment may demand specific material properties to optimize performance, such as lightweight materials for improved fuel efficiency or high-strength alloys for heavy-duty applications. Manufacturers can provide customized driveline components with materials selected to meet the specific performance and operational requirements.

5. Performance Optimization:

Driveline components can be customized to optimize performance in specific applications. Manufacturers can modify aspects such as gear ratios, differential configurations, or clutch characteristics to enhance acceleration, traction, efficiency, or specific performance attributes based on the intended use of the vehicle or equipment. This customization ensures that the driveline components are tailored to deliver the desired performance characteristics for the specific application.

6. Specialized Applications:

For specialized applications, such as off-road vehicles, racing cars, or industrial machinery, driveline components can be further customized to meet the unique demands of those environments. Manufacturers can develop specialized driveline components with features like enhanced cooling, reinforced construction, or increased torque capacity to withstand extreme conditions or heavy workloads.

Overall, customization of driveline components allows manufacturers to meet the specific requirements of different vehicles or equipment. From powertrain configuration to torque capacity, size and configuration, material selection, performance optimization, and specialized applications, customization ensures that driveline components are precisely designed and engineered to achieve the desired performance, compatibility, and integration with specific vehicles or equipment.

pto shaft

What benefits do drivelines offer for different types of vehicles and equipment?

Drivelines offer several benefits for different types of vehicles and equipment across various industries. They play a critical role in power transmission, mobility, efficiency, and overall performance. Here’s a detailed explanation of the benefits drivelines offer for different types of vehicles and equipment:

1. Power Transmission: Drivelines are designed to efficiently transmit power from the engine or power source to the driven components, such as wheels, tracks, implements, or machinery. They ensure the smooth transfer of torque, allowing vehicles and equipment to generate the necessary power for propulsion, lifting, hauling, or other tasks. By effectively transmitting power, drivelines maximize the performance and productivity of vehicles and equipment.

2. Mobility and Maneuverability: Drivelines enable vehicles and equipment to achieve mobility and maneuverability across various terrains and working conditions. By transmitting power to the wheels or tracks, drivelines provide the necessary traction and control to overcome obstacles, navigate uneven surfaces, and operate in challenging environments. They contribute to the overall stability, handling, and agility of vehicles and equipment, allowing them to move efficiently and safely.

3. Versatility and Adaptability: Drivelines offer versatility and adaptability for different types of vehicles and equipment. They can be designed and configured to meet specific requirements, such as front-wheel drive, rear-wheel drive, four-wheel drive, or all-wheel drive systems. This flexibility allows vehicles and equipment to adapt to various operating conditions, including normal roads, off-road terrains, agricultural fields, construction sites, or industrial facilities. Drivelines also accommodate different power sources, such as internal combustion engines, electric motors, or hybrid systems, enhancing the adaptability of vehicles and equipment.

4. Efficiency and Fuel Economy: Drivelines contribute to efficiency and fuel economy in vehicles and equipment. They optimize power transmission by utilizing appropriate gear ratios, minimizing energy losses, and improving overall system efficiency. Drivelines with advanced technologies, such as continuously variable transmissions (CVTs) or automated manual transmissions (AMTs), can further enhance efficiency by continuously adjusting gear ratios based on load and speed conditions. Efficient driveline systems help reduce fuel consumption, lower emissions, and maximize the operational range of vehicles and equipment.

5. Load Carrying Capacity: Drivelines are designed to handle and transmit high torque and power, enabling vehicles and equipment to carry heavy loads. They incorporate robust components, such as heavy-duty axles, reinforced drive shafts, and durable differentials, to withstand the demands of load-bearing applications. Drivelines ensure the reliable transmission of power, allowing vehicles and equipment to transport materials, tow trailers, or carry payloads efficiently and safely.

6. Safety and Control: Drivelines contribute to safety and control in vehicles and equipment. They enable precise control over acceleration, deceleration, and speed, enhancing driver or operator confidence and maneuverability. Drivelines with features like traction control systems, limited-slip differentials, or electronic stability control provide additional safety measures by improving traction, stability, and handling in challenging road or operating conditions. By ensuring optimal power distribution and control, drivelines enhance the overall safety and stability of vehicles and equipment.

7. Durability and Reliability: Drivelines are built to withstand harsh operating conditions and provide long-term durability and reliability. They are engineered with high-quality materials, precise manufacturing processes, and advanced technologies to ensure the driveline components can endure the stresses of power transmission. Well-designed drivelines require minimal maintenance, reducing downtime and enhancing the overall reliability of vehicles and equipment.

8. Specialized Functionality: Drivelines offer specialized functionality for specific types of vehicles and equipment. For example, in off-road vehicles or heavy-duty construction equipment, drivelines with features like differential locks, torque vectoring, or adjustable suspension systems provide enhanced traction, stability, and control. In agricultural machinery, drivelines with power take-off (PTO) units enable the connection of various implements for specific tasks like plowing, seeding, or harvesting. Such specialized driveline features enhance the performance and versatility of vehicles and equipment in their respective applications.

In summary, drivelines provide numerous benefits for different types of vehicles and equipment. They ensure efficient power transmission, facilitate mobility and maneuverability, offer versatility and adaptability, contribute to efficiency and fuel economy, handle heavy loads, enhance safety and control, provide durability and reliability, and offer specialized functionality. By incorporating well-designed drivelines, manufacturers can optimize the performance, productivity, and overall functionality of vehicles and equipment across various industries.

China Good quality Machinery Parts Rotor Gear Shaft Customized Machining Knurling High Precision with Factory Price for Auto Drive Factory Price Drive LineChina Good quality Machinery Parts Rotor Gear Shaft Customized Machining Knurling High Precision with Factory Price for Auto Drive Factory Price Drive Line
editor by CX 2024-02-21

China wholesaler Tractor Pto Driveshaft Driveline Factory Hollow Spline Cardan Adapter Universal Joint Yoke Flexible Front Prop Rear CV Axle Propeller Automobile Drive Shaft PTO Driveline

Product Description

Tractor Pto Driveshaft Driveline Factory Hollow Spline Cardan Adapter Universal Joint Yoke Flexible Front Prop Rear CV Axle Propeller Automobile Drive Shaft



Product Description

Agricultural truck universal joint steering

PTO Shaft


Function of PTO Shaft Drive Shaft Parts & Power Transmission
Usage of PTO Shaft Kinds of Tractors & Farm Implements
Yoke Types for PTO Shaft Double push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing Of Yoke Forging
PTO Shaft Plastic Cover YW; BW; YS; BS; Etc
Colors of PTO Shaft Green; Orange; Yellow; Black Ect.
PTO Shaft Series T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Types for PTO Shaft Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect
Processing Of Tube Cold drawn
Spline Types for PTO Shaft 1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;

We also sell accessories for the pto shaft, including :
Yoke: CV socket yoke, CV weld yoke, flange yoke, end yoke, weld yoke, slip yoke
CV center housing, tube, spline, CV socket flange, u-joint, dust cap

Light vehicle drive line
Our products can be used for transmission shafts of the following brands
Toyota, Mitsubishi, Nissan, Isu  zu, Suzuki, Dafa, Honda, Hyundai, Mazda, Fiat, Re  nault, Kia, Dacia, Ford. Dodge, Land Rover, Peu geot, Volkswagen Audi, BMW Benz Volvo, Russian models

Gear shaft

Company Profile







Related Products

Application:

Company information:



/* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Carbon Steel
Load: Drive Shaft
Stiffness & Flexibility: Stiffness / Rigid Axle
Journal Diameter Dimensional Accuracy: IT6-IT9
Axis Shape: Straight Shaft
Shaft Shape: Real Axis
Samples:
US$ 38/Piece
1 Piece(Min.Order)

|
Request Sample

pto shaft

How do PTO drivelines ensure efficient power transfer while maintaining operator safety?

PTO (Power Take-Off) drivelines are designed to ensure efficient power transfer while prioritizing operator safety. These drivelines incorporate various features and mechanisms to achieve both objectives. Let’s delve into the details:

1. Safety Shields and Guards:

PTO drivelines often include safety shields or guards to enclose the rotating components, such as the driveline shaft and universal joints. These shields are typically made of durable materials and are designed to prevent accidental contact with the moving parts, reducing the risk of entanglement or injury. Safety shields and guards serve as a physical barrier between the driveline and operators, ensuring operator safety while allowing power transfer to occur efficiently.

2. Shear Pins or Bolts:

Shear pins or bolts are commonly used in PTO drivelines to provide a safety measure against excessive loads or sudden obstructions. These pins or bolts are designed to break or shear off when the torque exceeds a certain threshold, disconnecting the driveline and preventing damage to the driveline components. By sacrificing themselves under high load conditions, shear pins or bolts protect the driveline from potential damage, ensuring operator safety and minimizing the need for costly repairs.

3. Slip Clutches:

Slip clutches are another safety feature incorporated into PTO drivelines. These clutches allow for a controlled slipping action when the torque exceeds a predetermined limit. The slipping action protects the driveline and driven equipment from sudden shock loads or excessive torque, preventing damage to the driveline components and reducing the risk of operator injury. Slip clutches provide a safety margin and help maintain efficient power transfer by momentarily disengaging the driveline until the excessive torque diminishes.

4. Overload Protection Devices:

Some PTO drivelines are equipped with overload protection devices, such as torque limiters or electronic control systems. These devices monitor the torque levels in the driveline and automatically disengage or limit power transmission when the torque exceeds a safe threshold. By preventing the driveline from operating under extreme loads, overload protection devices safeguard the driveline components and maintain operator safety. These devices can be reset or adjusted once the excessive load is removed, allowing power transfer to resume.

5. Constant Velocity (CV) Joints:

PTO drivelines that utilize constant velocity (CV) joints offer several safety benefits. CV joints maintain a constant angular velocity, regardless of the operating angle of the driveline, reducing vibration and power loss. By providing smooth power transmission, CV joints minimize the risk of sudden jolts or jerks that could endanger operators or compromise the stability of the driven equipment. The consistent power transfer facilitated by CV joints enhances both operator safety and the overall efficiency of the driveline.

6. Operator Training and Safety Practices:

While not directly built into the driveline itself, operator training and safety practices play a crucial role in ensuring safe and efficient PTO driveline operation. It is essential for operators to receive comprehensive training on the proper use, maintenance, and safety protocols associated with PTO drivelines. This training should include guidelines for safe engagement and disengagement of the driveline, understanding the importance of safety shields and guards, and recognizing potential hazards and risks during operation. By following recommended safety practices, operators can minimize the likelihood of accidents or injuries and maintain efficient power transfer.

By combining these features and promoting proper operator training, PTO drivelines achieve a balance between efficient power transfer and operator safety. The incorporation of safety shields, shear pins or bolts, slip clutches, overload protection devices, and CV joints helps prevent accidents, protect driveline components, and ensure the well-being of operators. It is crucial to adhere to manufacturer guidelines and industry safety standards to maximize the effectiveness of these safety measures and maintain a safe working environment.

pto shaft

What safety precautions should operators follow when working with PTO drivelines?

Working with PTO (Power Take-Off) drivelines requires careful attention to safety due to the potential hazards associated with rotating components and high levels of torque. Operators should follow specific safety precautions to minimize the risk of accidents and injuries. Here are the key safety precautions that operators should follow when working with PTO drivelines:

1. Read and Follow Manufacturer’s Instructions:

– Operators should thoroughly read and understand the manufacturer’s instructions and safety guidelines provided for the specific PTO driveline and equipment they are operating. These instructions typically cover proper installation, operation, maintenance, and safety precautions specific to the equipment. Following the manufacturer’s guidelines ensures that the equipment is used correctly and reduces the risk of accidents.

2. Wear Appropriate Personal Protective Equipment (PPE):

– Operators should always wear the appropriate personal protective equipment (PPE) when working with PTO drivelines. This includes items such as safety glasses, protective gloves, sturdy footwear, and clothing that covers the body. PPE helps protect against flying debris, accidental contact with rotating components, and other potential hazards.

3. Ensure Proper Guarding and Shielding:

– PTO drivelines should be equipped with proper guarding and shielding to prevent accidental contact with rotating or moving parts. Operators should ensure that all guards and shields are in place and properly secured before operating the equipment. Guards and shields help contain debris, reduce the risk of entanglement, and protect against accidental contact with the driveline components.

4. Avoid Loose-Fitting Clothing and Jewelry:

– Operators should avoid wearing loose-fitting clothing, jewelry, or any other items that could get caught in the driveline components. Loose clothing or jewelry can be pulled into the rotating parts, resulting in entanglement or serious injuries. It is important to wear fitted clothing and remove any dangling accessories before operating the equipment.

5. Engage PTO Only When Necessary:

– Operators should engage the PTO only when necessary and disengage it when the equipment is not in use. Engaging the PTO while personnel are near the driveline increases the risk of accidental contact and injuries. The PTO should be engaged only when the equipment is properly set up, and all personnel are at a safe distance.

6. Be Aware of Surroundings:

– Operators should always be aware of their surroundings and ensure that no one is near the driveline before starting or operating the equipment. It is crucial to maintain a safe distance from the driveline and keep bystanders away to prevent accidental contact and injuries.

7. Shut Down Equipment Before Servicing:

– Before performing any maintenance or servicing tasks on the equipment or the PTO driveline, operators should shut down the equipment and disable the power source. This ensures that the driveline components are not in motion and reduces the risk of accidental startup or contact with moving parts.

8. Regular Maintenance and Inspection:

– Operators should adhere to a regular maintenance and inspection schedule for the PTO driveline and associated equipment. This includes checking for any signs of wear, damage, or loose connections. Regular maintenance helps identify potential issues before they become safety hazards and ensures that the driveline operates properly.

9. Receive Proper Training:

– Operators should receive proper training on the safe operation of the equipment and the PTO driveline. Training should cover topics such as equipment setup, safe operating procedures, emergency shut-off procedures, and the recognition of potential hazards. Well-trained operators are more likely to operate the equipment safely and respond appropriately in case of emergencies.

10. Follow Lockout/Tagout Procedures:

– When performing maintenance or repair tasks that require accessing the driveline components, operators should follow lockout/tagout procedures. This involves isolating the power source, applying locks and tags to prevent accidental startup, and verifying that the equipment is de-energized before beginning any work. Lockout/tagout procedures are essential for preventing unexpected energization and protecting personnel from hazardous energy.

By following these safety precautions, operators can minimize the risk of accidents and injuries when working with PTO drivelines. Safety should always be a priority, and operators should remain vigilant, adhere to proper procedures, and use common sense to ensure a safe working environment.

pto shaft

How do PTO drivelines handle variations in speed, torque, and angles during operation?

PTO (Power Take-Off) drivelines are designed to handle variations in speed, torque, and angles during operation, ensuring efficient power transmission between the power source (such as a tractor engine) and the driven equipment. Here’s how PTO drivelines handle these variations:

Variations in Speed:

PTO drivelines accommodate variations in speed through the use of different mechanisms, depending on the type of driveline. Here are two common methods:

1. Constant Velocity (CV) Joints: CV joints are commonly used in CV PTO drivelines to maintain a constant speed and smooth power transmission, even when the driven equipment operates at varying angles or speeds. CV joints allow the driveline to transmit power without a significant increase in vibration or power loss. These joints consist of specially designed bearings and races that allow for a constant angular velocity, regardless of the operating angle of the driveline. This ensures that the driven equipment receives a consistent and uniform power supply, even as the speed varies.

2. Variable Pulleys or Clutches: In some non-CV PTO drivelines or applications, variable pulleys or clutches can be used to adjust the speed ratio between the power source and the driven equipment. By changing the position of the pulleys or adjusting the clutch engagement, the effective diameter of the pulleys or the contact area of the clutch can be altered, allowing for speed adjustments. This enables operators to match the speed of the driven equipment to the desired operational requirements, accommodating variations in speed during operation.

Variations in Torque:

PTO drivelines are designed to handle variations in torque, ensuring efficient power transmission even when the torque requirements change. Here are two common methods used to handle torque variations:

1. Slip Clutches: Slip clutches are commonly used in PTO drivelines to protect the driveline and driven equipment from excessive torque or sudden shock loads. These clutches incorporate a mechanism that allows the driveline to slip or disengage momentarily when the torque exceeds a certain threshold. This slipping action protects against damage by relieving the excess torque and allows the equipment to continue operating once the resistance is removed. Slip clutches provide a safety measure to prevent driveline and equipment damage due to sudden changes in torque.

2. Shear Bolts: Shear bolts are another method used to handle torque variations in PTO drivelines. These bolts are designed to break and disconnect the power transmission when the torque exceeds a certain threshold. By breaking the shear bolts, the driveline and equipment are protected from excessive torque, preventing damage. Shear bolts are commonly used in applications where sudden obstructions or excessive loads can occur, such as in rotary cutters or flail mowers.

Variations in Angles:

PTO drivelines are engineered to accommodate variations in operating angles. Here’s how they handle angle variations:

1. Flexible Design: PTO drivelines are often designed with flexibility in mind, allowing for slight misalignments and variations in operating angles. Flexible couplings or telescopic sections within the driveline can help compensate for angular misalignments, ensuring smooth power transmission even when the driven equipment operates at an angle. These flexible components can absorb and accommodate the movement and misalignment between the power source and the driven equipment, reducing stress and potential damage to the driveline.

2. Articulating Joints: Some PTO drivelines incorporate articulating joints, such as universal joints or CV joints, to handle variations in operating angles. These joints allow for movement and flexibility, accommodating changes in angle without compromising power transmission. Universal joints can handle up to 30 degrees of angular misalignment, while CV joints can handle even greater angles, providing a smooth and continuous power transfer across a range of operating angles.

By incorporating these design features and mechanisms, PTO drivelines effectively handle variations in speed, torque, and angles during operation. This ensures reliable and efficient power transmission between the power source and the driven equipment, allowing for optimal performance and productivity in a wide range of agricultural and industrial applications.

China wholesaler Tractor Pto Driveshaft Driveline Factory Hollow Spline Cardan Adapter Universal Joint Yoke Flexible Front Prop Rear CV Axle Propeller Automobile Drive Shaft PTO Driveline  China wholesaler Tractor Pto Driveshaft Driveline Factory Hollow Spline Cardan Adapter Universal Joint Yoke Flexible Front Prop Rear CV Axle Propeller Automobile Drive Shaft PTO Driveline
editor by CX 2024-02-20

China Professional Auto Parts CZPT Pajero V73 /V93/V77 Rear 2003 Drive Shaft Transmission 3401A018 Drive Line

Product Description

Product Description

As a professional manufacturer for propeller shaft, we have +1000 items for all kinds of car, At present, our products are mainly sold in North America, Europe, Australia, South Korea, the Middle East and Southeast Asia and other regions, applicable models are European cars, American cars, Japanese and Korean cars, etc.



Our advantage:



1. Full range of products

2. MOQ qty: 1pcs/items

3. Delivery on time

4: Warranty: 1 YEAR

OE NUMBER 3401A018
TYPE MITSUBISHI Pajero V73 /V93/V77 rear 2003 auto
MATERIAL STEEL
BALANCE STHangZhouRD G16,3200RMP

/* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

After-sales Service: 1year
Condition: New
Color: Black
Customization:
Available

|

Customized Request

.shipping-cost-tm .tm-status-off{background: none;padding:0;color: #1470cc}

Shipping Cost:

Estimated freight per unit.







about shipping cost and estimated delivery time.
Payment Method:









Initial Payment



Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.

pto shaft

How do drivelines ensure optimal power transfer while minimizing energy losses?

Drivelines play a crucial role in ensuring optimal power transfer from the engine to the wheels while minimizing energy losses. The design and components of the driveline system are carefully engineered to maximize efficiency and minimize power wastage. Here are some key factors that contribute to achieving optimal power transfer and minimizing energy losses within a driveline:

1. Efficient Power Transmission:

Drivelines utilize various components, such as transmissions, clutches, and torque converters, to transmit power from the engine to the wheels. These components are designed to minimize energy losses by reducing friction, improving gear mesh efficiency, and optimizing torque transfer. For example, using low-friction materials, such as roller bearings, and employing advanced gear designs, like helical or hypoid gears, can help reduce power losses due to friction and gear meshing.

2. Gear Ratio Optimization:

The selection of appropriate gear ratios is essential for achieving optimal power transfer. By choosing gear ratios that match the engine’s power characteristics and the vehicle’s driving conditions, the driveline can efficiently convert and transmit power to the wheels. Optimized gear ratios ensure that the engine operates within its optimal RPM range, reducing unnecessary power losses and improving overall efficiency.

3. Limited Slip Differentials:

In driveline systems with multiple driven wheels (such as all-wheel drive or four-wheel drive), limited slip differentials (LSDs) are often employed to distribute power between the wheels. LSDs allow for better traction by transferring torque to the wheels with more grip while minimizing energy losses. By allowing some degree of differential wheel speed, LSDs ensure power is efficiently transmitted to the wheels that can utilize it most effectively.

4. Hybrid and Electric Drivetrains:

In hybrid and electric drivetrains, driveline systems are designed to optimize power transfer and minimize energy losses specific to the characteristics of electric motors and energy storage systems. These drivetrains often utilize sophisticated power electronics, regenerative braking systems, and advanced control algorithms to efficiently manage power flow and energy regeneration, resulting in improved overall system efficiency.

5. Aerodynamic Considerations:

Drivelines can also contribute to optimal power transfer by considering aerodynamic factors. By minimizing air resistance through streamlined vehicle designs, efficient cooling systems, and appropriate underbody airflow management, drivelines help reduce the power required to overcome aerodynamic drag. This, in turn, improves overall driveline efficiency and minimizes energy losses.

6. Advanced Control Systems:

The integration of advanced control systems within drivelines allows for optimized power transfer and efficient operation. Electronic control units (ECUs) monitor various parameters such as throttle position, vehicle speed, and driving conditions to adjust power distribution, manage gear shifts, and optimize torque delivery. By continuously adapting to real-time conditions, these control systems help maximize power transfer efficiency and minimize energy losses.

7. Material Selection and Weight Reduction:

The choice of materials and weight reduction strategies in driveline components contribute to minimizing energy losses. Lightweight materials, such as aluminum or composites, reduce the overall weight of the driveline system, resulting in reduced inertia and lower power requirements. Additionally, reducing the weight of rotating components, such as driveshafts or flywheels, helps improve driveline efficiency by minimizing energy losses associated with rotational inertia.

8. Regular Maintenance and Lubrication:

Proper maintenance and lubrication of driveline components are essential for minimizing energy losses. Regular maintenance ensures that driveline components, such as bearings and gears, are in optimal condition, minimizing frictional losses. Additionally, using high-quality lubricants and maintaining appropriate lubrication levels reduces friction and wear, improving driveline efficiency.

By incorporating these design considerations and engineering techniques, drivelines can achieve optimal power transfer while minimizing energy losses. This leads to improved overall efficiency, enhanced fuel economy, and reduced environmental impact.

pto shaft

Can driveline components be customized for specific vehicle or equipment requirements?

Yes, driveline components can be customized to meet specific vehicle or equipment requirements. Manufacturers and suppliers offer a range of options for customization to ensure optimal performance, compatibility, and integration with different vehicles or equipment. Customization allows for tailoring the driveline components to specific powertrain configurations, operating conditions, torque requirements, and space constraints. Let’s explore the details of customization for driveline components:

1. Powertrain Configuration:

Driveline components can be customized to accommodate different powertrain configurations. Whether it’s a front-wheel drive, rear-wheel drive, or all-wheel drive system, manufacturers can design and provide specific components such as differentials, gearboxes, and drive shafts that are compatible with the required power distribution and torque transfer characteristics of the particular configuration.

2. Torque Capacity:

Driveline components can be customized to handle specific torque requirements. Different vehicles or equipment may have varying torque outputs based on their intended applications. Manufacturers can engineer and produce driveline components with varying torque-handling capabilities to ensure reliable and efficient power transmission for a range of applications, from passenger vehicles to heavy-duty trucks or machinery.

3. Size and Configuration:

Driveline components can be customized in terms of size, shape, and configuration to fit within the space constraints of different vehicles or equipment. Manufacturers understand that each application may have unique packaging limitations, such as limited available space or specific mounting requirements. Through customization, driveline components can be designed and manufactured to align with these specific dimensional and packaging constraints.

4. Material Selection:

The choice of materials for driveline components can be customized based on the required strength, weight, and durability characteristics. Different vehicles or equipment may demand specific material properties to optimize performance, such as lightweight materials for improved fuel efficiency or high-strength alloys for heavy-duty applications. Manufacturers can provide customized driveline components with materials selected to meet the specific performance and operational requirements.

5. Performance Optimization:

Driveline components can be customized to optimize performance in specific applications. Manufacturers can modify aspects such as gear ratios, differential configurations, or clutch characteristics to enhance acceleration, traction, efficiency, or specific performance attributes based on the intended use of the vehicle or equipment. This customization ensures that the driveline components are tailored to deliver the desired performance characteristics for the specific application.

6. Specialized Applications:

For specialized applications, such as off-road vehicles, racing cars, or industrial machinery, driveline components can be further customized to meet the unique demands of those environments. Manufacturers can develop specialized driveline components with features like enhanced cooling, reinforced construction, or increased torque capacity to withstand extreme conditions or heavy workloads.

Overall, customization of driveline components allows manufacturers to meet the specific requirements of different vehicles or equipment. From powertrain configuration to torque capacity, size and configuration, material selection, performance optimization, and specialized applications, customization ensures that driveline components are precisely designed and engineered to achieve the desired performance, compatibility, and integration with specific vehicles or equipment.

pto shaft

Which industries and vehicles commonly use drivelines for power distribution?

Drivelines are widely used in various industries and vehicles for power distribution. They play a crucial role in transmitting power from the engine or power source to the driven components, enabling motion and torque transfer. Here’s a detailed explanation of the industries and vehicles that commonly utilize drivelines for power distribution:

1. Automotive Industry: The automotive industry extensively utilizes drivelines in passenger cars, commercial vehicles, and off-road vehicles. Drivelines are a fundamental component of vehicles, enabling power transmission from the engine to the wheels. They are found in a range of vehicle types, including sedans, SUVs, pickup trucks, vans, buses, and heavy-duty trucks. Drivelines in the automotive industry are designed to provide efficient power distribution, enhance vehicle performance, and ensure smooth acceleration and maneuverability.

2. Agricultural Industry: Drivelines are essential in the agricultural industry for various farming machinery and equipment. Tractors, combines, harvesters, and other agricultural machinery rely on drivelines to transfer power from the engine to the wheels or tracks. Drivelines in agricultural equipment often incorporate power take-off (PTO) units, allowing the connection of implements such as plows, seeders, and balers. These drivelines are designed to handle high torque loads, provide traction in challenging field conditions, and facilitate efficient farming operations.

3. Construction and Mining Industries: Drivelines are extensively used in construction and mining equipment, where they enable power distribution and mobility in heavy-duty machinery. Excavators, bulldozers, wheel loaders, dump trucks, and other construction and mining vehicles rely on drivelines to transfer power from the engine to the wheels or tracks. Drivelines in these industries are designed to withstand rigorous operating conditions, deliver high torque and traction, and provide the necessary power for excavation, hauling, and material handling tasks.

4. Industrial Equipment: Various industrial equipment and machinery utilize drivelines for power distribution. This includes material handling equipment such as forklifts and cranes, industrial trucks, conveyor systems, and industrial vehicles used in warehouses, factories, and distribution centers. Drivelines in industrial equipment are designed to provide efficient power transmission, precise control, and maneuverability in confined spaces, enabling smooth and reliable operation in industrial settings.

5. Off-Road and Recreational Vehicles: Drivelines are commonly employed in off-road and recreational vehicles, including all-terrain vehicles (ATVs), side-by-side vehicles (UTVs), dirt bikes, snowmobiles, and recreational boats. These vehicles require drivelines to transfer power from the engine to the wheels, tracks, or propellers, enabling off-road capability, traction, and water propulsion. Drivelines in off-road and recreational vehicles are designed for durability, performance, and enhanced control in challenging terrains and recreational environments.

6. Railway Industry: Drivelines are utilized in railway locomotives and trains for power distribution and propulsion. They are responsible for transmitting power from the locomotive’s engine to the wheels or driving systems, enabling the movement of trains on tracks. Drivelines in the railway industry are designed to handle high torque requirements, ensure efficient power transfer, and facilitate safe and reliable train operation.

7. Marine Industry: Drivelines are integral components in marine vessels, including boats, yachts, ships, and other watercraft. Marine drivelines are used for power transmission from the engine to the propellers or water jets, providing thrust and propulsion. They are designed to withstand the corrosive marine environment, handle high torque loads, and ensure efficient power transfer for marine propulsion.

These are some of the industries and vehicles that commonly rely on drivelines for power distribution. Drivelines are versatile components that enable efficient power transmission, mobility, and performance across a wide range of applications, contributing to the functionality and productivity of various industries and vehicles.

China Professional Auto Parts CZPT Pajero V73 /V93/V77 Rear 2003 Drive Shaft Transmission 3401A018 Drive LineChina Professional Auto Parts CZPT Pajero V73 /V93/V77 Rear 2003 Drive Shaft Transmission 3401A018 Drive Line
editor by CX 2024-02-20

China best Agriculture Pto Drive Shaft for Earth Mover and Potato Harvester PTO Driveline

Product Description

T4-660-01B-07G-YIIIP Agriculture PTO Drive Shaft for Earth Mover and Potato Harvester

Product: PTO Drive Shaft
Model: T4-660-01B-07G-YIIIP
Size: φ27*74.6  Length 660mm
Raw Material: 45# Steel
Hardness: 58-64HRC
Delivery Date: 7-60 Days
MOQ: 100 sets or according to stocks without minimum Qty.
Sample: Acceptable
We could produce all kinds of PTO Drive Shaft and Parts according to customers’ requirement.

REF. UJ L.mm
T4-660-01B-07G-YIIIP ø27*74.6 660

About us



We have more than 17 years experience of Spare parts, especially on Drive Line Parts.

We deeply participant in the Auto Spare parts business in HangZhou city which is the most import spare parts production area in China.



We are supply products with good cost performance for different customers of all over the world.

We keep very good relationship with local produces with the WIN-WIN-WIN policy.

Factory supply good and fast products;

We supply good and fast service;

And Customers gain the good products and good service for their customers.

This is a healthy and strong equilateral triangle keep HangZhou Speedway going forward until now.



/* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Type: Transmission
Usage: Tillage, Harvester, Planting and Fertilization
Material: 45# Steel
Power Source: Diesel
Weight: 8
After-sales Service: Online Support

pto shaft

How do manufacturers ensure the compatibility of PTO drivelines with diverse equipment?

Manufacturers employ various methods and considerations to ensure the compatibility of PTO (Power Take-Off) drivelines with diverse equipment. Here are the key factors they take into account:

1. Standardization:

– PTO drivelines are built according to standardized specifications and dimensions. Manufacturers adhere to industry standards and guidelines, such as those set by organizations like the American Society of Agricultural and Biological Engineers (ASABE) and the International Organization for Standardization (ISO). These standards define key parameters like shaft dimensions, connection types, torque ratings, and safety requirements. By following these standards, manufacturers ensure that their PTO drivelines can be easily interchanged and connected with diverse equipment that adheres to the same standards.

2. Compatibility Testing:

– Manufacturers conduct extensive compatibility testing to verify the performance and suitability of their PTO drivelines with different types of equipment. This testing involves connecting the drivelines to various implements, machines, and power sources to assess factors like power transfer efficiency, alignment, torque handling, and safety. Compatibility testing helps identify any issues or limitations that may arise when connecting the drivelines to different equipment. Manufacturers can then make necessary adjustments or recommendations to ensure optimal compatibility.

3. Application-Specific Design:

– Manufacturers often design PTO drivelines with specific applications in mind. They consider the requirements and operating conditions of various equipment categories, such as agricultural machinery, construction equipment, or industrial machinery. Manufacturers may offer different models or configurations of PTO drivelines tailored to these specific applications. For example, agricultural PTO drivelines may have features like enhanced dust resistance, rugged construction, and additional safety measures, while industrial PTO drivelines may prioritize high torque capacity and durability for heavy-duty applications. By designing drivelines with application-specific considerations, manufacturers ensure that their products meet the unique demands of diverse equipment types.

4. Consultation and Collaboration:

– Manufacturers maintain close relationships and collaborations with equipment manufacturers and suppliers. This collaboration allows them to exchange information about equipment requirements and driveline specifications. By understanding the specific needs of different equipment, manufacturers can develop PTO drivelines that align with those requirements. They may also provide technical support and guidance to equipment manufacturers regarding the selection and integration of PTO drivelines into their products. This consultation and collaboration foster compatibility and ensure that the drivelines are suitable for the intended equipment.

5. Documentation and Guidelines:

– Manufacturers provide detailed documentation, user manuals, and guidelines that outline the compatibility aspects of their PTO drivelines. These resources specify the recommended equipment types, connection methods, torque limits, and other important considerations for proper integration. Operators and equipment manufacturers can refer to these documents to ensure the compatibility of the PTO drivelines with diverse equipment. Manufacturers may also offer technical support or customer service channels to address any compatibility-related questions or concerns.

6. Ongoing Research and Development:

– Manufacturers continuously invest in research and development to improve the compatibility of their PTO drivelines with evolving equipment technologies. They stay updated with industry trends, technological advancements, and changing equipment requirements. This allows them to adapt and innovate their driveline designs, materials, and manufacturing processes to ensure ongoing compatibility with new and emerging equipment types and applications.

In summary, manufacturers ensure the compatibility of PTO drivelines with diverse equipment through standardization, compatibility testing, application-specific design, consultation and collaboration with equipment manufacturers, documentation and guidelines, and ongoing research and development. These efforts enable manufacturers to provide drivelines that effectively and safely interface with a wide range of equipment, promoting seamless integration and reliable power transfer.

pto shaft

Can you provide examples of machinery that utilize PTO drivelines for power transmission?

PTO (Power Take-Off) drivelines are widely used in various agricultural and industrial applications to transmit power from a power source, such as a tractor or engine, to driven machinery. Here are several examples of machinery that commonly utilize PTO drivelines for power transmission:

1. Agricultural Equipment:

– Tractor Implements: Numerous agricultural implements rely on PTO drivelines to receive power for their operation. Examples include rotary cutters, flail mowers, disc harrows, tillers, seeders, fertilizer spreaders, sprayers, hay balers, hay rakes, and hay tedders. These implements connect to the PTO shaft of a tractor, harnessing its power to perform tasks such as cutting, tilling, sowing, fertilizing, spraying, baling, and raking.

– Harvesting Equipment: Machinery used in harvesting, such as combines, forage harvesters, and grain augers, often utilize PTO drivelines to power their cutting and conveying mechanisms. The PTO driveline powers components like the cutter heads, threshing systems, and grain handling equipment, allowing for efficient harvesting and processing of crops.

– Forage and Silage Equipment: Equipment used for forage and silage production, including forage choppers, silage blowers, and silage wagons, commonly incorporate PTO drivelines. The driveline provides power for cutting and chopping forage crops and conveying them into storage or transport units.

– Irrigation Systems: PTO-driven irrigation systems, such as irrigation pumps and sprinkler systems, utilize PTO drivelines to power the pumps and drive the water distribution mechanisms. The PTO driveline allows for efficient water supply and irrigation in agricultural fields.

2. Construction and Earthmoving Equipment:

– Earth Augers: Earth augers used in construction and landscaping applications often rely on PTO drivelines for power transmission. PTO-driven augers are used for digging holes and installing posts, fences, and foundations.

– Post Hole Diggers: Post hole diggers, commonly used in fencing and construction projects, utilize PTO drivelines for power transmission. The driveline powers the digging mechanism, allowing for efficient digging of holes for post installation.

3. Industrial Equipment:

– Wood Chippers: Wood chippers used in the forestry and landscaping industries often incorporate PTO drivelines for power transmission. The PTO driveline powers the cutting and chipping mechanisms, enabling efficient processing of branches, logs, and other woody materials.

– Generators: PTO-driven generators are commonly used as backup power sources or in remote locations where electrical power is not readily available. The PTO driveline powers the generator, converting mechanical power into electrical power.

– Stationary Pumps: PTO drivelines are utilized in stationary pumps, such as water pumps, slurry pumps, and trash pumps. The PTO driveline drives the pump, allowing for the efficient transfer or movement of liquids or slurry.

– Industrial Mixers: PTO-driven mixers are used in various industries, including agriculture, food processing, and construction. The PTO driveline powers the mixing mechanism, facilitating the blending or agitation of materials.

– Hay Grinders: Hay grinders or tub grinders used in the agricultural and livestock industries often incorporate PTO drivelines for power transmission. The driveline powers the grinding mechanism, allowing for the processing of hay, straw, and other forage materials.

4. Specialty Equipment:

– Ice Resurfacers: Ice resurfacing machines, commonly used in ice rinks and winter sports facilities, often utilize PTO drivelines for power transmission. The driveline powers the ice resurfacing mechanism, ensuring a smooth and level ice surface.

– Snowblowers: Snowblowers or snow throwers used in snow removal operations can be equipped with PTO drivelines to power their cutting and throwing mechanisms. The PTO driveline enables efficient snow clearing by propelling and discharging snow.

– Street Sweepers: PTO-driven street sweepers are used for cleaning streets, parking lots, and other paved surfaces. The PTO driveline powers the sweeping brushes and collection system, facilitating effective debris removal.

These examples demonstrate the wide range of machinery that utilize PTO drivelines for power transmission in various industries. PTO drivelines provide a versatile and efficient means of transferring power, allowing for the operation of diverse equipment with a common power source.

pto shaft

Can you explain the types of PTO drivelines available and their specific applications?

PTO (Power Take-Off) drivelines come in various types and configurations, each designed to suit specific applications and equipment requirements. The choice of PTO driveline depends on factors such as power transmission needs, rotational speed, torque requirements, and the type of machinery being used. Let’s explore some of the commonly used types of PTO drivelines and their specific applications:

1. Non-Constant Velocity (Non-CV) PTO Driveline:

Applications: Non-CV PTO drivelines are typically used for applications where the driven equipment operates at a constant speed and does not require smooth, continuous power transmission. They are commonly employed in tasks such as powering stationary equipment, grain augers, water pumps, and generators.

2. Constant Velocity (CV) PTO Driveline:

Applications: CV PTO drivelines are designed for applications that require smooth and continuous power transmission, especially in situations where the driven equipment operates at varying angles or speeds. They are commonly used in tasks such as operating mowers, balers, combines, forage harvesters, and other equipment that involve rotational movement at different angles and speeds.

3. Shear Bolt PTO Driveline:

Applications: Shear bolt PTO drivelines are primarily used to protect the driveline and driven equipment from excessive shock loads or sudden obstructions. They are commonly employed in tasks such as rotary cutters, flail mowers, and other implements that may encounter obstacles or tough vegetation. The shear bolts in the driveline are designed to break and disconnect the power transmission in case of excessive load, preventing damage to the driveline or equipment.

4. Slip Clutch PTO Driveline:

Applications: Slip clutch PTO drivelines offer a means of protecting the driveline and driven equipment from excessive torque or sudden shock loads. They are commonly used in tasks such as rotary tillers, post hole diggers, and other implements where the equipment may encounter resistance or encounter obstacles. The slip clutch mechanism allows the driveline to slip or disengage momentarily when the torque exceeds a certain threshold, protecting against damage and allowing the equipment to continue operating once the resistance is removed.

5. Hydraulic PTO Driveline:

Applications: Hydraulic PTO drivelines utilize hydraulic power instead of mechanical power transmission. They are commonly used in applications such as operating hydraulic pumps, winches, and other hydraulic-driven equipment. Hydraulic PTO drivelines are often found in industrial machinery, construction equipment, and vehicles where hydraulic power is readily available.

6. Front PTO Driveline:

Applications: Front PTO drivelines are specifically designed for machinery with front-mounted implements or attachments. They are commonly used in tasks such as operating front-mounted mowers, snow blowers, or hydraulic front loaders. Front PTO drivelines enable power transmission to the front of the vehicle or equipment, allowing for efficient operation of front-mounted implements.

These are just some of the commonly used types of PTO drivelines and their specific applications. It’s important to note that the specific type of PTO driveline used may vary depending on the manufacturer, equipment design, and industry requirements. When selecting a PTO driveline, it’s crucial to consider the specific needs of the equipment and the intended application to ensure optimal performance, efficiency, and reliability.

China best Agriculture Pto Drive Shaft for Earth Mover and Potato Harvester PTO Driveline  China best Agriculture Pto Drive Shaft for Earth Mover and Potato Harvester PTO Driveline
editor by CX 2024-02-19

China Professional High Quality for CZPT Hilux Front Axle Factory Direct Sale CV Axle Drive Shaft for CZPT Hilux OEM 43430-0K020 Drive Line

Product Description

High quality For CZPT hilux front axle Factory direct sale CV axle drive shaft for CZPT hilux OEM 43430-0K571
HangZhou CZPT Auto Parts Co., Ltd.Our Factory Main Products with CZPT pickup trucks,hilux,vigo,revo,rocco,prado land cruiser ,nissan NAVARA CZPT D-MAX ,FORD RANGER Series full vehicle accessories.

HangZhou CZPT Auto Parts Co., Ltd. is a professional and leading company specialized in auto spare parts sales since 2571 in HangZhou of China.Our company specialized in products such as spark plug, ignition coil,brake padsoxygen sensor, handbrake cable,air conditioner filter,cylinder assy,suspension part,HID bulbs etc for Toyota, Honda, Nissan, MAZDA, MITSUBISHI, HYUNDAI, MERCEDES Benz, BMW, Volkswagen and so on. We always keep a stable and long term cooperation with many factories for meeting our customers various requirements.
Q: What’s your MOQ?
A: MOQ usually is 20 pieces. (depend on which products you need)

Q: What’s your Payment terms?
A: 30% deposit, 70% balance payment before shipment.

Q: What payment method you accept?
A: Bank Tranfer, T/T, Credit Card, PayPal. Western Union.

Q: How do you control your quality?
A: All products were produced in high standards, and has passed component tests, unfinished tests and 100% products testing before delivery.

Q: How do you ship goods?
A: if you have shipping agent in China, we can send goods to your agent warehouse. If don’t have agent, we will long cooperated shipping company, you can choose by DHL, Fedex, or UPS. or shipping by sea, we will give you several solutions to choose.

Q: Can we customized the length, size or with different materials?
A: Yes, we will try our best to meet most of your needs.

Q: Can you produce the same product as mine if I provide you a sample?
A: Yes, we are capable of producing the electric parts for the most products.

Q: Can you provide me free sample first?
A: It depends on the sample’s cost, normally we can, but client need to pay the shipping cost.

  /* March 10, 2571 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

After-sales Service: Online Support
Condition: New
Color: Black
Certification: CE
Type: Universal Joint
Application Brand: Toyota
Samples:
US$ 26.88/Piece
1 Piece(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

pto shaft

What maintenance practices are essential for prolonging the lifespan of driveline components?

Implementing proper maintenance practices is crucial for ensuring the longevity and optimal performance of driveline components. Regular maintenance helps identify potential issues, prevent major failures, and prolong the lifespan of driveline components. Here are some essential maintenance practices for prolonging the lifespan of driveline components:

1. Regular Inspections:

Performing regular visual inspections of driveline components is essential for detecting any signs of wear, damage, or misalignment. Inspect the driveline components, including driveshafts, universal joints, CV joints, differentials, and transmission components, for any cracks, leaks, excessive play, or unusual noise. Identifying and addressing issues early can prevent further damage and potential driveline failure.

2. Lubrication:

Proper lubrication of driveline components is crucial for minimizing friction, reducing wear, and ensuring smooth operation. Follow the manufacturer’s recommendations for lubrication intervals and use the appropriate type and grade of lubricant. Regularly check and maintain the lubrication levels in components such as bearings, gears, and joints to prevent excessive heat buildup and premature wear.

3. Fluid Changes:

Fluids play a vital role in driveline component performance and longevity. Regularly change fluids, such as transmission fluid, differential oil, and transfer case fluid, according to the manufacturer’s recommended intervals. Over time, these fluids can become contaminated or break down, leading to compromised performance and increased wear. Fresh fluids help maintain proper lubrication, cooling, and protection of driveline components.

4. Alignment and Balancing:

Proper alignment and balancing of driveline components are essential for minimizing vibration, reducing stress, and preventing premature wear. Periodically check and adjust the alignment of driveshafts, ensuring they are properly aligned with the transmission and differential. Additionally, balance rotating components, such as driveshafts or flywheels, to minimize vibrations and prevent excessive stress on driveline components.

5. Torque Check:

Regularly check and ensure that all driveline components are properly torqued according to the manufacturer’s specifications. Over time, fasteners can loosen due to vibrations or thermal expansion and contraction. Loose fasteners can lead to misalignment, excessive play, or even component failure. Regular torque checks help maintain the integrity and performance of the driveline system.

6. Maintenance of Supporting Systems:

Driveline components rely on the proper functioning of supporting systems, such as cooling systems and electrical systems. Ensure that cooling systems are functioning correctly, as overheating can cause driveline components to degrade or fail. Additionally, regularly inspect electrical connections, wiring harnesses, and sensors to ensure proper communication and operation of driveline components.

7. Proper Driving Techniques:

The way a vehicle is driven can significantly impact the lifespan of driveline components. Avoid aggressive driving, sudden acceleration, and excessive braking, as these actions can put undue stress on the driveline components. Smooth and gradual acceleration, proper shifting techniques, and avoiding excessive load or towing capacities help minimize wear and prolong component life.

8. Service and Maintenance Records:

Maintain comprehensive service and maintenance records for the driveline components. Keep track of all maintenance tasks, repairs, fluid changes, and inspections performed. These records help ensure that maintenance tasks are performed on time, provide a history of component performance, and assist in diagnosing any recurring issues or patterns.

By following these maintenance practices, vehicle owners can prolong the lifespan of driveline components, minimize the risk of failures, and ensure optimal performance and reliability of the driveline system.

pto shaft

Can driveline components be customized for specific vehicle or equipment requirements?

Yes, driveline components can be customized to meet specific vehicle or equipment requirements. Manufacturers and suppliers offer a range of options for customization to ensure optimal performance, compatibility, and integration with different vehicles or equipment. Customization allows for tailoring the driveline components to specific powertrain configurations, operating conditions, torque requirements, and space constraints. Let’s explore the details of customization for driveline components:

1. Powertrain Configuration:

Driveline components can be customized to accommodate different powertrain configurations. Whether it’s a front-wheel drive, rear-wheel drive, or all-wheel drive system, manufacturers can design and provide specific components such as differentials, gearboxes, and drive shafts that are compatible with the required power distribution and torque transfer characteristics of the particular configuration.

2. Torque Capacity:

Driveline components can be customized to handle specific torque requirements. Different vehicles or equipment may have varying torque outputs based on their intended applications. Manufacturers can engineer and produce driveline components with varying torque-handling capabilities to ensure reliable and efficient power transmission for a range of applications, from passenger vehicles to heavy-duty trucks or machinery.

3. Size and Configuration:

Driveline components can be customized in terms of size, shape, and configuration to fit within the space constraints of different vehicles or equipment. Manufacturers understand that each application may have unique packaging limitations, such as limited available space or specific mounting requirements. Through customization, driveline components can be designed and manufactured to align with these specific dimensional and packaging constraints.

4. Material Selection:

The choice of materials for driveline components can be customized based on the required strength, weight, and durability characteristics. Different vehicles or equipment may demand specific material properties to optimize performance, such as lightweight materials for improved fuel efficiency or high-strength alloys for heavy-duty applications. Manufacturers can provide customized driveline components with materials selected to meet the specific performance and operational requirements.

5. Performance Optimization:

Driveline components can be customized to optimize performance in specific applications. Manufacturers can modify aspects such as gear ratios, differential configurations, or clutch characteristics to enhance acceleration, traction, efficiency, or specific performance attributes based on the intended use of the vehicle or equipment. This customization ensures that the driveline components are tailored to deliver the desired performance characteristics for the specific application.

6. Specialized Applications:

For specialized applications, such as off-road vehicles, racing cars, or industrial machinery, driveline components can be further customized to meet the unique demands of those environments. Manufacturers can develop specialized driveline components with features like enhanced cooling, reinforced construction, or increased torque capacity to withstand extreme conditions or heavy workloads.

Overall, customization of driveline components allows manufacturers to meet the specific requirements of different vehicles or equipment. From powertrain configuration to torque capacity, size and configuration, material selection, performance optimization, and specialized applications, customization ensures that driveline components are precisely designed and engineered to achieve the desired performance, compatibility, and integration with specific vehicles or equipment.

pto shaft

Can you explain the components of a typical driveline and their specific roles?

A typical driveline consists of several components that work together to transmit power from the engine or power source to the driven components, enabling motion and providing torque. Each component plays a specific role in the driveline system. Here’s an explanation of the key components of a typical driveline and their specific roles:

1. Engine: The engine is the power source of the driveline system. It converts fuel energy (such as gasoline or diesel) into mechanical power by the process of combustion. The engine generates rotational power, which is transferred to the driveline to initiate power transmission.

2. Transmission: The transmission is responsible for selecting the appropriate gear ratio and transmitting power from the engine to the driven components. It allows the driver or operator to control the speed and torque output of the driveline. In manual transmissions, the driver manually selects the gears, while in automatic transmissions, the gear shifts are controlled by the vehicle’s computer system.

3. Drive Shaft: The drive shaft, also known as a propeller shaft or prop shaft, is a tubular component that transmits rotational power from the transmission to the differential or the driven components. It typically consists of a hollow metal tube with universal joints at both ends to accommodate variations in driveline angles and allow for smooth power transfer.

4. Differential: The differential is a gearbox-like component that distributes power from the drive shaft to the wheels or driven axles while allowing them to rotate at different speeds, particularly during turns. It compensates for the difference in rotational speed between the inner and outer wheels in a turn, ensuring smooth and controlled operation of the driveline system.

5. Axles: Axles are shafts that connect the differential to the wheels. They transmit power from the differential to the wheels, allowing them to rotate and generate motion. In vehicles with independent suspension, each wheel typically has its own axle, while in solid axle configurations, a single axle connects both wheels on an axle assembly.

6. Clutch: In manual transmission systems, a clutch is employed to engage or disengage the engine’s power from the driveline. It allows the driver to smoothly engage the engine’s power to the transmission when shifting gears or coming to a stop. By disengaging the clutch, power transmission to the driveline is temporarily interrupted, enabling gear changes or vehicle stationary positions.

7. Torque Converter: Torque converters are used in automatic transmissions to transfer power from the engine to the transmission. They provide a fluid coupling between the engine and transmission, allowing for smooth power transmission and torque multiplication. The torque converter also provides a torque amplification effect, which helps in vehicle acceleration.

8. Universal Joints: Universal joints, also known as U-joints, are flexible couplings used in the driveline to accommodate variations in angles and misalignments between the components. They allow for the smooth transmission of power between the drive shaft and other components, compensating for changes in driveline angles during vehicle operation or suspension movement.

9. Constant Velocity Joints (CV Joints): CV joints are specialized joints used in some drivelines, particularly in front-wheel-drive and all-wheel-drive vehicles. They enable smooth power transmission while accommodating variations in angles and allowing the wheels to turn at different speeds. CV joints maintain a constant velocity during rotation, minimizing vibrations and power losses.

10. Transfer Case: A transfer case is a component found in four-wheel-drive and all-wheel-drive systems. It transfers power from the transmission to both the front and rear axles, allowing all wheels to receive power. The transfer case usually includes additional components such as a multi-speed gearbox and differential mechanisms to distribute power effectively to the axles.

These are the key components of a typical driveline and their specific roles. Each component is crucial in transferring power, enabling motion, and ensuring the smooth and efficient operation of vehicles and equipment.

China Professional High Quality for CZPT Hilux Front Axle Factory Direct Sale CV Axle Drive Shaft for CZPT Hilux OEM 43430-0K020 Drive LineChina Professional High Quality for CZPT Hilux Front Axle Factory Direct Sale CV Axle Drive Shaft for CZPT Hilux OEM 43430-0K020 Drive Line
editor by CX 2024-02-19
